China brand JMC brand 4*2 LHD 14-16m aerial working platform truck for sale, Factory sale good price JMC overhead working truck
the technical advantages of CLW brand overhead working platform truck manufactured by Chengli Special Automobile Co., Ltd. as below
1. Operational height:16m,rated load of cage:200-250kg,four H-type hydraulic telescopic legs.
2. 360°all rotation.
3. Two sets of operating system,operating mode:electronic control,cage operating and platform operating.
4.Basic composition:chassis,PTO,gear pump,chassis parts,folding arms/telescopic arms, oil cylinder,pipeline system,working cage,
rotating mechanism,hydraulic system,electrical system.
5.Convenient moving,used in narrow roads and streets.Aerial work platform can be used in aloft working of electricity,street lamp,
municipal administration,gardens,transportation and so on.
6.High quality with best price.
If you're interested in our aerial working truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com

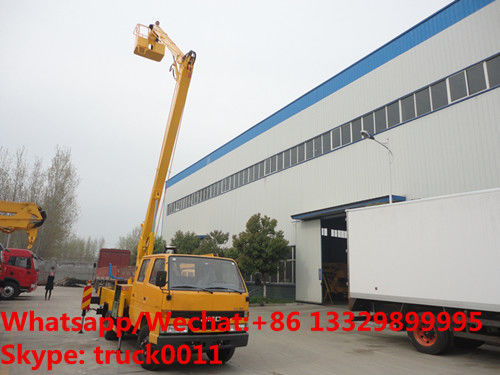

More pictures of JMC 12-16m aerial working platform truck as below
high quality and competitive price JMC brand 12m-16m aerial working platform truck for sale
customized JMC brand overhead working truck for sale
JMC brand aerial working platform truck for sale
main technical parameters of JMC brand 12-16m aerial working platform truck manufactured by Chengli Special Automobile Co., Ltd. as below
| Vehicle brand |
JMC |
| Vehicle main dimension: |
| Overall dimension(LXWxH) |
7300x2000x3100mm |
| Wheel base(mm) |
3360 |
| Wheel track(Front/Rear) |
1385/1425mm |
| Min ground clearance |
180mm |
| Hydraulic Ladder Carrier Equipment |
| Max working height |
12m |
| Rated load of basket |
200kg |
| Max height of basket floor from ground |
14m |
| Max outreach |
7m |
| Material of basket |
Fiber glass |
| Dimension of basket |
1.12x0.72x1.12m |
| Slew degree |
360 |
| Chassis |
| Cabin |
Double cabin,2+3seats. titable, |
| JMC Diesel Engine |
4cylinders in line,4stroke,water cooling,Turbo-charging |
| Rated power |
102/2000(hp/rpm) |
| Max torque |
240NM |
| Gear box |
5F,1R |
| Steering |
Power steering machine |
| Tyre: |
7.00-16(6+1) |
| Electric |
24V, 100AHx2 |
| Fuel tank |
80L |
| Others |
Heater,radio |
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of aerial working platform truck in since 2004s. With many years’ experience in producing, we could supply 10m-28m overhead working trucks including ISUZU bucket truck, dongfeng aerial working platform truck, JMC high altitude operation truck, forland bucket truck, etc. More information, please feel free to contact with Ms. Anita Deng
the technical advantages of CLW Aerial platform trucks manufactured by Chengli Special Automobile Co., Ltd. as below.
1 Aerial working height 12m,14m,16m,18m,20m,20m,14m
2 the rotation system will allow continuous 360-
degree rotation, with a safety system to prevent sudden drops in case of failure
3 Aerial basket is moving system with dual action commands, one at ground level and the other at the level of the
basket
4 truck equipped with two rotating amber lights
5 Aerial platform working truck equipped with balance valve ,emergency valve to keep safety when people overhead
working.
More information, please feel free to contact with Ms. Anita.
Whatsapp/Wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
