best price FAW 4*2 RHD road sweeping truck for sale, street sweeper with 4 sweeping brushes, road cleaning truck
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of road sweeper truck in China. With many years’ development, we can offer ISUZU road sweeper truck, dongfeng street sweeper truck, forland road sweeping vehicle, YUEJIN road sweeper, JMC road sweeper truck, etc. More information, please feel free to contact with Ms. Anita.
The main technical advantages of FAW ROAD sweeper trucks manufactured by Chengli Special Automobile Co., Ltd. as below
1, the control box is at the driver cab, different electronics is centralized, flexible operation.
2, there are four sweeping disks and sucking working tog, perfect sweeping-sucking performance, and the sweeping disks with anti-collision function.
3, the sweeping brushes at the right side and the left sides can work at the same time, just one side sweeper working.
4, the sweeping cleaning device is with simple, reliable, etc.
5, the garbage vans and the cleaning water van adopts high quality stainless steel.
6, the hydraulic KEY units are imported.
If you're interested in our road sweeping truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat: +86 13329899995.
Website: www.trucksinchina.com

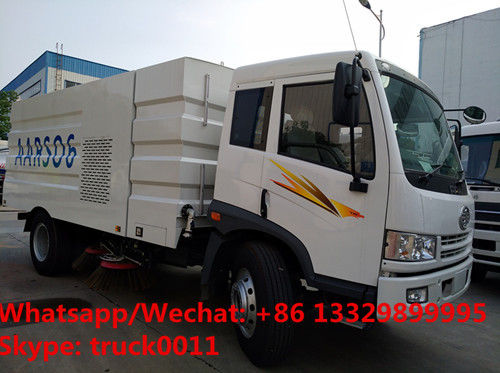

More pictures of FAW brand RHD road sweeping truck manufactured by Chengli Special Automobile Co., Ltd. as below
customized FAW brand 4*2 RHD road sweeping truck for sale
High quality and competitive price FAW brand RHD street sweeping truck for sale
Factory sale good price FAW street sweeping truck
Main technical parameters of hot sale FAW brand 4*2 RHD road sweeper truck manufactured by Chengli Special Automobile Co., Ltd. as below.
| 1 main parameters |
| Product name |
FAW brand 4*2 RHD road sweeper truck for sale |
Remark |
| Chassis model |
CA |
|
| Wheelbase |
4200mm |
|
| Front/rear suspension |
1400/1700 (mm) |
|
| Engine model |
Truck chassis engine |
BF4M2012-16E4 |
|
| Auxiliary engine |
B140 |
|
| Output power |
Truck chassis engine power |
140KW/190hp |
|
| Auxiliary engine power |
103KW/140hp |
|
| Max Gradient |
30% |
|
| Emission standard |
Euro 3/4 |
|
| Outside-automobile noisy in the accelerating |
≤84dB(A), meeting the noisy of Second stage requirements |
|
| Max speed |
85 km/h |
|
| Approach angle |
22 |
|
| Departure angle |
17 |
|
| Weight |
Curb weight |
8495 kg |
|
| Max total weight |
12490kg |
|
| Dimension |
Overall dimension(L×W×H) |
6800X2400X2900 |
|
| Mini ground clearance |
240mm |
|
| Sucking and sweeping working |
Sweeping efficiency |
≥95% |
|
| Max sucking granularity |
120mm |
|
| Sucking-sweeping width |
2.8-3.0 m |
|
| Max sweeping ability |
60000 m2/h |
|
| Extension dimension of dish brush |
≥400 mm |
|
| |
Sucking disk driving speed |
3-20km/h |
|
| Tanker |
Water tank volume |
3.5m³ |
|
| Material |
Stainless steel |
|
| Wastes van |
Wastes van loading capacity |
7.2m³ |
|
| Open angle of the discharging door |
≥45° |
|
| Material |
Stainless steel |
|
| Hydraulic system |
Type |
Open-type, electronic-control |
|
| Main units |
Gear pump, hydraulic motor, hydraulic cylinders, solenoid valve, |
|
| System pressure |
16MPa |
|
| Hydraulic oil tank volume |
60L |
|
| Oil temperature |
60 ˚C |
|
| Electronic |
Type |
DC24V |
|
| voltage |
24V |
|
| Storage battery |
24V(2 sets of 12V in series) |
|
| Water sprinkling system |
Main units |
Electronic diaphragm pump, water filter, nozzles, |
|
| Sweeping disks device |
Type |
4 sets of sweeping disks middle-installed driving by hydraulic motor;
The right-front one can work separately, with the function of dodge and repeat working |
|
| Diameter |
850mm |
|
| Angle |
ante version:4-6 °; extroversion: 4-7° |
|
| Sucking disk |
Tyre |
Single sucking, hydraulic-control, spring s |
|
| Sucking diameter |
200mm |
|
| Other device |
Rear part |
With LED arrow indication light |
|
2, spare parts
| Item |
Name |
Nos. |
Remark |
| 1 |
fire fighting hose |
1 |
For adding water |
| 2 |
fire fighting wrench |
1 |
For disassembling fire hydrant |
| 3 |
Manual rocker for hydraulic pump |
1 |
For manual starting the hydraulic pump |
| 4 |
Spare tyre(with the truck) |
1 |
|
3, spare parts
| Item |
Name |
Nos. |
|
| 1 |
Brushing |
80 |
|
| 2 |
weather-strip of fan |
1 |
|
| 3 |
weather-strip of rear door |
1 |
|
4,imported device
| Items |
Name |
Model |
Country |
| 1 |
Hydraulic motor |
BMR125 |
Item |
| 2 |
Hydraulic valve |
SWH-G02-C4-D2H |
Taiwan |
The road sweeper trucks manufactured by Chengli Special Automobile Co., Ltd. are with 4 sets of sweeping brushes, Cummins auxiliary engine, Italian imported motor, Schneider Electric switches, Taiwan Solenoid valves, maintenance-free and self-disconnect type clutch, maintenance-free fan, stainless steel water tank, stainless steel wastes van, rear part LED arrow lamp, manual portable pump Emergency system, etc. The rotation mechanism of the front sweeper arm adopts high-tech rear-resistant work spacer sleeve, without buttering, precise cold-bending seamless hydraulic oil pipes, etc.
