Factory sale cheapest price China made 45,000Liters bulk stationary lpg gas storage tank, surface propane gas storage tank for sale
Cheng Li produced a liquefied gas storage tanks in series, can be used to store the different nature of the liquefied petroleum gas (propane), propylene, ammonia, dimethyl , methanol, butadiene, butane, ethylene oxide, etc.in low pressure liquefied gases at room temperature; volume from 10 cubic meters --- 120 cubic optional. Besides, the lpg gas tank, Chengli Special Automobile Co., Ltd. could offer lpg gas trailer, lpg gas delivery truck, lpg gas dispenser vehicle, skid lpg gas filling plant, etc.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of lpg gas pressure vessels in China. With many years’ development, Chengli Special Automobile Co., Ltd., could manufacture and sell surface lpg gas storage tank, underground lpg gas storage tank, skid lpg gas refilling station, lpg gas trailer, lpg gas truck, etc. And our CLW brand lpg gas pressure vessels have been exported to Vietnam, Mongolia, Kazakhstan, Uzbekistan, Bangladesh, Korea, Russia, Afghan, Iraq, Angola, Algeria, Nigeria, Congo, Libya, Jordan, Ethiopia, Mozambique, Mali, Niger, Trinidad, Namibia, etc. More information, please feel free to contact ms. Anita.
If you're interested in our lpg gas storage tank, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995.

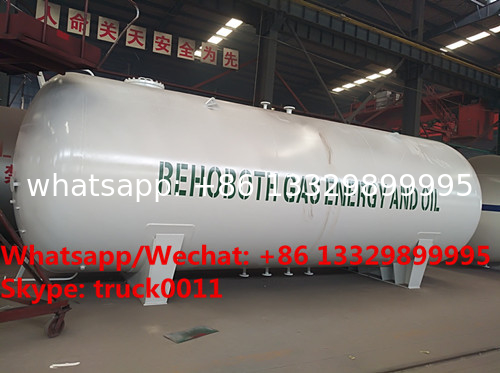

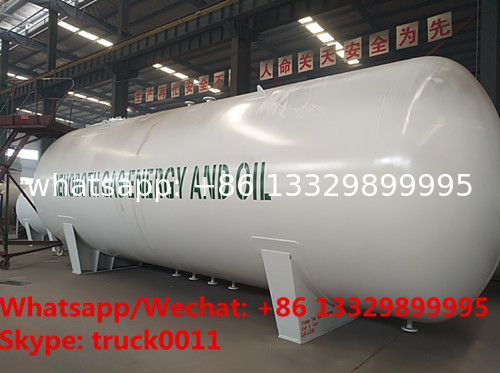

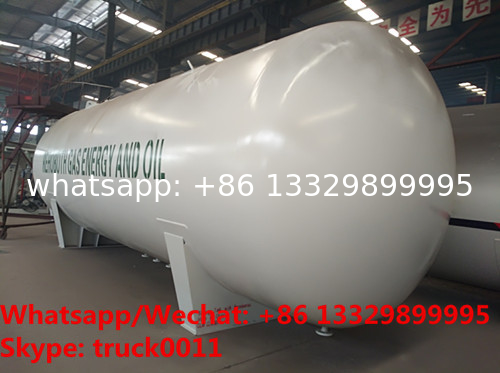

More pictures of 45,000Liters surface lpg gas storage tank manufactured by Chengli Special Automobile Co., Ltd. as below.
high quality and competitive price CLW brand 45,000Liters surface lpg gas storage tank for sale
HOT SALE! CLW brand 45m3 bulk propane gas storage tank
main technical parameters of 45,000Liters surface lpg gas storage tank manufactured by Chengli Special Automobile Co., Ltd. as below.
| Item |
Unit |
Main parameters |
| Product name |
|
LPG gas storage tank(45,000L) |
| Product model |
|
CLG2700-45 |
| Loading medium |
|
LPG gas (propane) |
| Overall dimension(L*W*H) |
mm |
8342*2728*3318 |
| Tank dimension(inner diameter*thickness*length) |
mm |
DN2700*14*8342 |
| Tank volume |
m3 |
45 |
| Tank thickness |
mm |
16 |
| End heads thickness |
mm |
14 |
| Curb mass |
kg |
10,220 |
| Real loading capacity |
Kg |
20,000 |
| Designed pressure |
Mpa |
1.77 |
| Working pressure |
Mpa |
≤1.6 |
| Working temperature |
℃ |
≤50 |
| Hydraulic test pressure |
Mpa |
2.22 |
| Air tight test pressure |
Mpa |
1.77 |
| Tank and main Material pressure components |
Q345R,16Mnlll |
| Standard |
<<GB150steel pressure vessel>>,<<Supervision Regulation on Safety Technology for Pressure Vessel>>
|
| Chosen accessories |
Safety valve, magic level gauge, pressure gauge, temperature gauge, cut-off valve, etc.
|
Safety Accessories for lpg gas tank as below
| Chengli Special Automobile Co., Ltd. |
Safety assembly |
Product model
40m3 LPG tank (DN2300)
|
| |
| List |
Model |
Name |
Nos. |
Remark |
| 1 |
J41N-2.5-50 |
Cut-off valve DN50 |
6 |
flange connecting term: RF |
| 2 |
J41N-2.5-25 |
Cut-off valve DN25 |
2 |
flange connecting term: RF |
| 3 |
J41N-2.5-80 |
Cuf-off valve DN80 |
1 |
flange connecting term: RF |
| 4 |
J24W-320-DN6 |
J24W model Needle valve M20×1.5 |
1 |
|
| 5 |
HG21584-95 |
Magnetic reversible plate level gauge UZFAL-2.5RF-2940-0.50 |
1 |
flange connecting term: RF |
| 6 |
A42F-25-80 |
Safety valve DN80 |
1 |
flange connecting term: RF |
| 7 |
Y-100T |
Pressure gauge M20×1.5 1.5 grade 0～4MPA |
1 |
|
| 8 |
WTQ-280 |
Thermometer M33×2 2.5 grade |
1 |
-40℃～60℃(45℃ and 50℃ with red remark ) |
