2021s new designed 5tons Skid LPG Filling Plant for home cylinders filling for sale, HOT SALE! skid-mounted lpg gas tanker with electronic filling scales
The skid-mounted skid lpg gas filling plant is just similar to an integrated liquefied gas station, which integrated liquefied gas storage tanks, motors, pumps, compressors, digital scales, valves, etc. It can directly fill the gas cylinders, which said that a sparrow is small and complete. However, some manufacturers that do not have technical strength generally cannot produce qualified gas equipments.
The skid lpg gas station is not only required safe and also reliable, the most importantly practical. The skid liquefied gas pumping station doesn’t have enough space like the liquefied gas station to arrange the equipment. The designers need to conceive how to arrange the supporting equipment in a small space and let it be safe for work. The working principle of skid lpg gas refilling plant mainly as below.
1, there must be safe and reliable circuit systems, pumps, digital filling scales and gas compressors, etc. all electricity to drive. At the same time, the circuit must be designed to be simple and easy to operate, too. When to purchase the motors, it is necessary to purchase the explosion-proof anti-static type fort the liquefied gas sparked and the concentration is too high and easy to explode.
2, the complete liquid phase, gas phase and reflux system, which require the designed to be very familiar with the principle of the liquefied gas station. When the liquid phase, gas phase are connected with the tank truck of the skid lpg plant, the liquefied gas in the tank is on the compressor.
Fill the tank under pressure. However, the volume of the skid lpg gas station is generally small. If the loading and unloading operation speed is too fast, the tank of the skid station can not accommodate too much liquefied petroleum gas at a time, and there is a danger. Therefore, the designer will design a return line on the liquid phase pipeline and install a safety valve on the pipeline. Once the pressure inside the pipeline is too large, the safety valve will jump open and leak excess liquefied gas propane, thus ensuring the overall Safety.
3. The emergency shut-off valve and concentration alarm will be installed in the place where the tank of the liquefied gas pumping station is connected with the pipeline. Once a leak or sudden situation occurs, double insurance can be provided.
If you're interested in our skid lpg gas refilling station, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995.
Website: www.trucksinchina.com

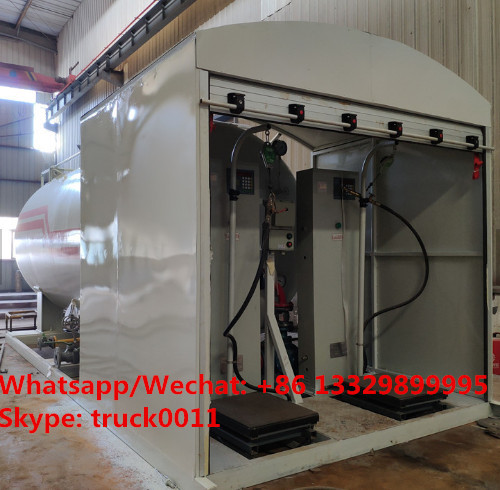

More pictures of CLW Brand 5tons skid lpg gas refilling station with double electronic filling scales as below.
Customized CLW brand 5tons skid lpg gas refilling station with double eletronic filling scales for sale
HOT SALE! 5tons skid lpg gas refilling station for sale
main technical parameters of CLW brand 5tons skid lpg gas refilling station with double filling scales as below
| Item |
Model |
Unit |
No. |
Remark |
| Lpg gas storage tank |
10,000Liters |
Piece |
1 |
Standard skid with low frame base (designed into load one 40’HQ container) |
| Hydrocarbon pump |
YQB15-5 |
Piece |
1 |
Driving belt with cover,pump base |
| Explosion-proof three-phase asynchronous motor |
5.5KW |
Piece |
1 |
| Concentration alarm |
- |
Piece |
1 |
|
| electronic scales |
China made |
Piece |
2 |
|
| Explosion-proof control box |
- |
Piece |
1 |
|
| Floating ball level meter |
UQZ-6 |
Piece |
1 |
|
| Temperature gauge |
M33*1.5 1.5 grade 0～4mpa |
Piece |
2 |
|
| Safety valve |
DN80 |
Piece |
1 |
|
| Globe valve |
DN80 |
Piece |
1 |
| Safety backflow valve |
AH42F-25 DN25 |
Piece |
1 |
|
| Y-Strainer |
GL41H-25 DN50 |
Piece |
2 |
|
| Globe valve |
J41W-40 DN50 |
Piece |
5 |
|
| Ball valve/check |
Q41F-40 DN50 |
Piece |
5 |
|
| Discharging pipe |
L=4m DN50 |
Piece |
2 |
|
| check valve |
M42N-25 DN50 |
Piece |
1 |
|
| Sprinkling |
|
Piece |
1 |
Galvanized tube |
| Needle valve |
DN6 |
Piece |
3 |
|
| Ball valve |
DN15 |
Piece |
1 |
|
| damper tube |
- |
Piece |
1 |
|
Nowadays, more and more clients choose to purchase mobile skid lpg gas plant for their lpg gas plant business. We Chengli Special Automobile Co., Ltd. can customize skid lpg gas plant with digital scales for filling domestic gas cylinders or automatic lpg gas dispenser for automobiles or gas cylinders. The lpg gas dispensing machine is with single filling gun or double filling guns for filling single gas cylinders or double gas cylinders at one time.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of lpg gas pressure vessels in China since 2004s. With many years’ development, we could offer Lpg gas skid station, is also called skid system lpg station, propane lpg skid-mounted filling station, lpg mounted skid refilling station, mobile lpg filling station, lpg skid station with dispenser and weight scale, lpg gas cylinder filling station, etc. And our CLW skid lpg gas filling stations is from 2tons to 40tons. More information, please feel free to contact with Ms. Anita Deng.
