Specifications of CLW brand truck with crane as below.
1.The crane can can be fitted with straight arms, folding arms,2-arms, 3-arms or 4-arms.
2.The crane can be 2 ton-30 ton.
3.The chassis brand can be Dongfeng,Schaman,HOWO and others if you like.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of truck with crane in China since 2004s. With many years' development, Chengli Special Automobile Co., Ltd. could supply truck mounted crane from 1ton to 20ton and heavy duty truck with cranes. More information, please feel free to contact with Ms. Anita Deng.
The crane truck is also called truck mounted crane, crane truck, truck with crane, crane loading truck, etc. The truck with crane is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc
As a professional truck crane supplier in China, the crane we manufacture is from 2 ton to 32 ton. The drive type of our truck mounted crane are 4x2, 6x2, 6x4,8x4,etc. The crane we produce are telescopic boom truck mounted crane, knuckle boom truck mounted crane. In chassis brand, we have dongfeng truck mounted crane, foton truck mounted crane, Jiefang truck mounted crane, Beiben truck mounted crane, etc.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc.
If you're interested in our truck with crane, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob: +86 13329899995.
Website: www.trucksinchina.com

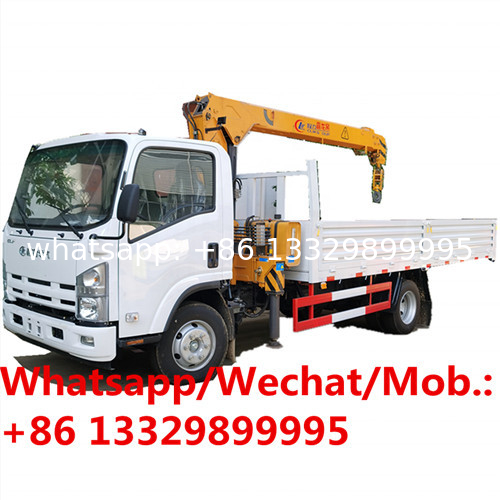

More pictures of ISUZU 700P 190hp diesel truck with crane as below.
Factory sale Japan truck with crane 5 ton manufactured by Chengli Special Automobile Co., Ltd. as below.
| Items |
Descriptions |
Specifications and Types |
| General |
Truck Name |
Fire truck |
| Drive Type |
4*2 |
| Gross Vehicle Weight(kg) |
10055 |
| Curb Weight (kg) |
3140 |
| Overall Dimensions (mm) |
7930×2170×2350 |
| Engine |
Engine Model |
4HK1-TCG40 |
| Engine Brand |
I-SUZU |
| Fuel Type |
Diesel |
| Power |
139kw/190HP |
| Emission Standard |
Euro IV |
| Displacement(ml) |
5193 |
| Engine Type |
6 cylinders in line,water cooling, turbocharged diesel engine,inter-cooling, electric control |
| Chassis |
Chassis Brand |
ISUZU |
| Tire No. |
6 +1s |
| Tire Specification |
235/75R17.5 14PR |
| Wheelbase (mm) |
4475 |
| Axle No. |
2 |
| Gear Box |
ISUZU MLD 6 speed forward with 1 reverse, manual |
| Steering Wheel |
Left hand drive with power assisted |
| Brake |
Air brake |
|
Crane
|
Crane Brand |
UNIC URV504 |
| Crane Weight |
1500 |
| Boom No. |
4 |
| Width of leg(m) |
5.1 |
| Max Lifting Capacity(kg) |
5050x2.5m |
| Max Working Radius(m) |
10.6 |
| Max Working Height(m) |
12.5 |
| Hydraulic Oil Tank(L) |
60 |
| |
|
|
| Remarks |
1.The lamp reflect to behind of truck 2pcs.
2.The big lamp on the middle on top cabin truck(Emergency Lamp).
3.The small lamp put beside the big lamp on top cabin truck 2pcs.
4.The side and rear guard are with reflective sticker.
5.The side wall of cargo is make from carbon steel and thickness 4mm.
6.The ground is make from carbon steel and thickness 6mm.
7.The cargo be divide by 2 part.
8.The spare wheel 1pcs, the tube and inner tube is standard.
9.Electric window glass.
10.Parking lock from factory 4pcs.
11.Front cargo make from good steel 12#beam channel also for support crane.
12.Stand make from good steel 50cm wide for put the heavy things in rear cargo.
13.Stabilize have 4pcs.
|
