The solid waste compactor truck is usually called compactor garbage truck,waste compression truck, refuse compactor, compression garbage truck,garbage compact truck,compressed refuse truck,etc.
Our garbage compactor truck for sale is constructed with 12# low alloy steeland 5mm, 4mm, 10mm steel.The body is fitted on the chassis by the truck beam.The body floor is fully sealed.All the sewage can go directly into the sewage tank,so as not to corrode the body and chassis .Moreover,it can also prevent the sewage leakage while the truck is driving on the road and avoid the secondary pollution.
The waste truck compactor usually compacts the waste using a hydraulically powered mechanism that employs a moving plate or shovel to scoop the waste out from the loading hopper and compress it against a moving wall. In most compactor designs, the plate has a pointed edge (hence giving it the industry standard name packer blade) which is designed to apply point pressure to the waste to break down bulky items in the hopper before being drawn into the main body of the truck.
There are three kinds of mechanism options available to the customer,barrel turnover mechanism,panel turnover mechanism and tipping mechanism.by the use of hydraulics,the barrel is locked during the overturning process,which is very safe and reliable.
As a professional special vehicle manufacturer in China, with ISO9001-2008 quality system and 3C certificate, the waste garbage compactor trucks we produce is from 4m³ to 18m³.
If you're interested in our garbage compactor truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995.
Website: www.trucksinchina.com

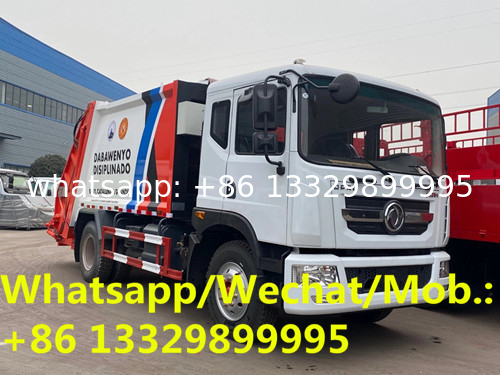

More pictures of Dongfeng D9 10cbm garbage compactor truck manufactured by Chengli Special Automobile Co., Ltd. as below.
main technical parameters of dongfeng D9 10cbm garbage compactor truck manufactured by Chengli Special Automobile Co., Ltd. as below.
| Items |
Descriptions |
Specifications and Types |
| General |
Truck Name |
Garbage Compactor truck |
| Drive Type |
4*2, left hand drive |
| Loading Capacity |
10 m³ |
| Gross Vehicle Weight(kg) |
16000 |
| Curb Weight (kg) |
9805 |
| Overall Dimensions L*W*H(mm) |
8470×2490×3250 |
| Engine |
Engine Model |
ISDe210 40 |
| Engine Brand |
Cummins |
| Fuel Type |
Diesel |
| Power |
155kw/210HP |
| Emission Standard |
Euro IV |
| Displacement(ml) |
6700 |
| Engine Type |
6 cylinders in line,water cooling, turbo-charged diesel engine,inter-cooling |
| Chassis |
Chassis Brand |
Dongfeng |
| Front/Rear Axle Load(KG) |
6000/10000 |
| Tire No. |
6 |
| Tire Specification |
9.00-20 Nylon tire or 9.00R20 steel tire |
| Wheelbase (mm) |
4500 |
| Axle No. |
2 |
| Gear Box |
6 speed forward with 1 reverse, manual |
| Brake |
Air break |
| Radiator |
Suitable for tropical climate |
| Front/rear suspension(mm) |
1430/2540 |
| Leaf Spring No. |
8/10+8 |
|
Equipment: 1. Equipped with completely sealed dustbin, hydraulic system, operation system.
2.Equipped with rear turnover mechanism,can hook dustbin or loading garbage by itself.
3.Equipped screeds and push shovel, compress by itself.High compression ratio.The sewage will flow to sewage tank automatically, avoid second pollution.
Good sealed performance, easily operation,high safety.
|
