The main technical parameters of FOTON xiangling V1 truck head as below
Truck model: CLW5030XXCSH6
Overall dimension (L*W*H): 5180*1760*2820mm

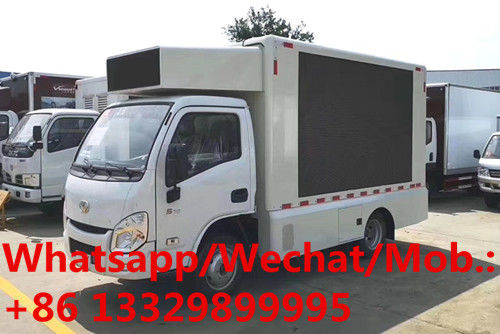

YUEJIN S70 mobile LED advertising truck, 2650mm wheelbase, LJ4A15Q6 112hp gasoline Euro Ⅵ engine, 185R15LT 8PR tires*4, 5 speed manual gearbox, power steering and ABS, etc.
The upper part of the YUEJIN 4*2 LHD p5 Mobile LED advertising truck with P4/P5/P6 LED screen as below.
1, LED screen
driver cab side: outdoor colorful LED screen, p6/p5 /p4 is selective
P6 colorful LED screen: 2304*1536mm
P5 Colorful LED screen: 2560*1440mm
P4 color LED screen: 2560*1440mm
front lintel singe red word screen(P10) dimension(L*W):960*320mm
Rear door single red word screen(P10) dimension(L*W): 960*1280mm
2, Roller advertising light box:
front passenger seat side: glass Roller advertising light box with Play 3-5 sets of advertisings in loop(if choose double sides LED screens, then without Roller advertising light box).
3, Power supply system
Gasoline generator unit* 1 set, YIHU brand
Type: Air cooling, electric start, manual start
Power: 6.5kw(for single side LED screen);
8kw(for double sides LED screens)
Internal and external power switching device, 220V mains interface
4, Operation system
Computer: industrial computer*1 set, AOC monitor.
Control software: Yangbang or Colorlight.
Amplifier: Yvette broadcast-grade amplifier, power: 200W.
Waterproof sound column: 2 pieces, power: 30W.
5, 【ventilation system】
One top ventilation skylight, front louver ventilation design,
The generator base is equipped with a high-power exhaust fan.
6, [Car body craft]
Carbon steel frame, outer Mongolian cold-rolled steel plate, base layer anti-rust paint, putty, external spray special car paint. The interior of the cabin body is made of glass fiber reinforced plastic, LED lighting in the cabin, and aluminum checkered board on the fl
