Customized FOTON AUMARK 4*2 LHD Euro 4 3T refrigerated truck for Phillipines, HOT SALE! lower price cold van box vehicle
Chengli Special Automobile Co., Ltd manufactures refrigerator trucks since 2004s in China. With so many years’ experience in manufacturing, we Chengli Special Automobile Co. Ltd could manufacture and sell vaccine delivery vehicle, meat hook refrigerated truck, fruit and vegetables refrigerated truck, milk food transport refrigerator truck, insulation van truck, van refrigerated truck, freezer minibus, small refrigerated truck, medium freezer van truck, big refrigerated truck, refrigerator semi-trailer, freezer refrigerated vehicles, dongfeng brand cold room truck, ISUZU brand refrigerated truck, FAW refrigerated truck, FOTON refrigerated truck, Chang’an freezer van truck, Yuejin refrigerated truck, JMC refrigerated truck, CMAC refrigerator truck, Aoling refrigerated truck, the smallest refrigerated truck, etc. More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.
We Chengli Special Automobile Co., Ltd. is a 12 years professional manufacturer of special trucks,supply different kinds of trucks,can be customized as customer requirements.
(1). Capacity: 0.5-30 ton refrigerator truck,31-50 ton refrigerated trailer.
(2). Steering wheel: both left and right hand drive,meet the needs of different countries.
(3). Emission standard: option Euro 1,Euro 2,Euro 3,Euro 4,Euro 5 refrigerator truck
(4). Truck chassis: option japan and china brand.
If you're interested in our refrigerated truck, please send email to truck0011@163.com or talk to Anita by Whatsapp: 0086 13329899995.
Website: www.trucksinchina.com

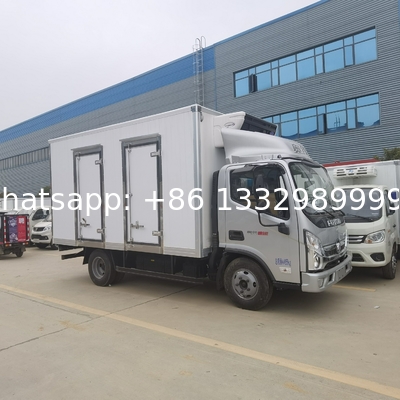

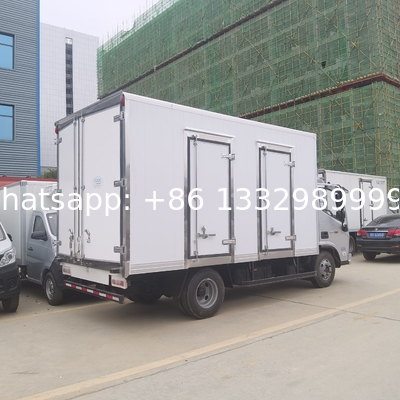

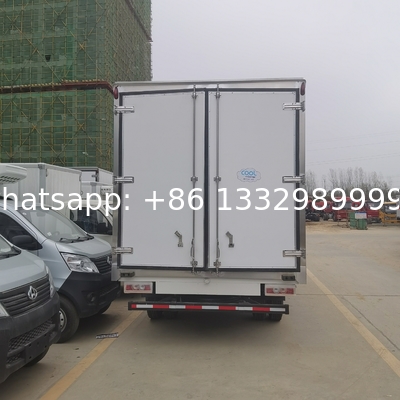

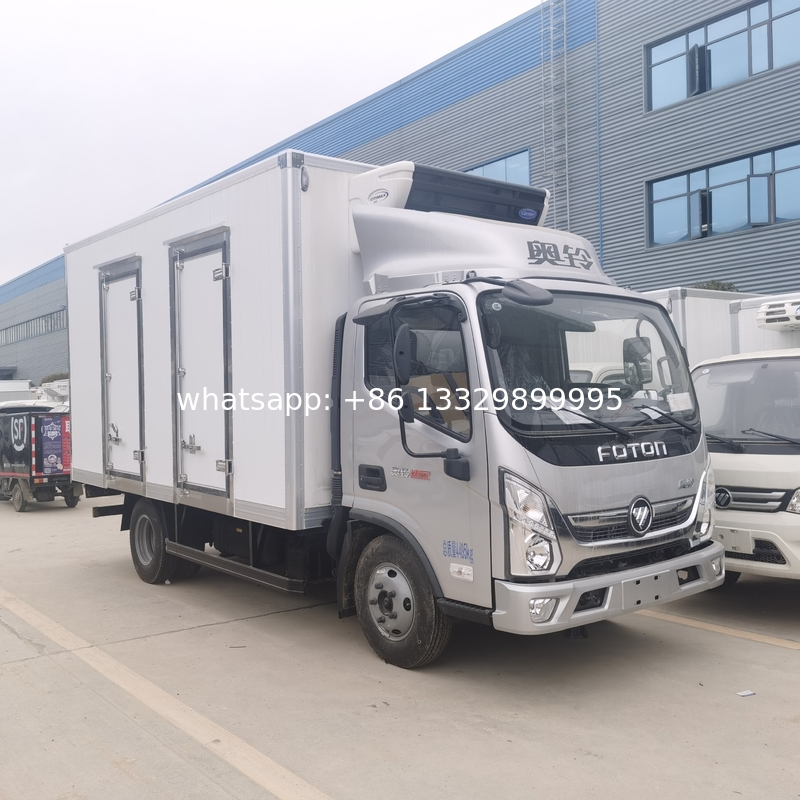

More picutres of FOTON AUMARK 4*2 LHD refrigerated truck is as below.
HOT SALE! FOTON AUMARK 3T refrigerated truck for sale
main technical parameters of FOTON AUMARK 3T cold van truck is as below
| Vehicle model |
AUMARK-E43 |
| Cabin |
Single row/W1880/left rudder |
| Whole vehicle main dimensions |
Overall dimensions (LxWxH)mm |
5960×1940×2250 |
| Wheel base(mm) |
3360 |
| Weight data |
Curb weight(kg) |
2480 |
| Gross vehicle weight(kg) |
6000 |
| Persons in cab |
3 |
| Whole vehicle main performance |
Max. speed(km/h) |
95 |
| ENGINE |
Model |
4J28TC |
| Emissions standards |
Euro Ⅳ |
| Displacement(L) |
2.771 |
| Rated Power(kw/rpm) |
81 |
| Max torque (N.m/rpm) |
280 |
| Gearbox |
Model |
6G40 |
| Front axle |
Type/Mainreducetion ratio |
2.4T |
| Rear axle |
Type/Mainreducetion ratio |
4.5T/5.375 |
| Suspension |
Front suspension/Leaf spring number |
3 |
| Rear suspension/Leaf spring number |
5+2 |
| Brake system |
Service brake |
Drum pneumatic braking |
| |
Parking brake |
Brake gas brake |
| |
Auxiliary brake |
Engine exhaust brake |
| Wheels and tyre size |
6+1(7.00R16) |
| voltage |
24V |
|
|
| Packing case |
Internal size |
4100*2000*2000 |
|
| The material |
Inside and outside: glass steel plate, sandwich: polyurethane board (≥40kg/m3) |
|
| thickness |
Front plate, back plate, top plate, bottom plate and left and right plate: more than 100mm |
|
| The framework |
The upper and lower frames and front columns are aluminum profiles or stainless steel |
|
| Open the door form |
Double rear door, passenger side single side door |
|
| The refrigeration unit |
Brand and Specifications |
American Cold King /SV400 |
|
| Refrigeration requirements |
Minimum temperature: -18℃ |
|
| The optional features |
No backup electricity, no heating |
|
| The attachment |
Protective device |
Side protection: comply with GB11567.1; Rear protection: according to GB11567.2 |
|
| Door lock and folding |
Choose stainless steel material |
|
| Lamps |
Adopt LED seal lamp, lampshade need to glue seal |
|
| rear pedal |
Aluminum alloy pedal |
|
| interior |
Equipped with patterned aluminum bottom plate and patterned anti-collision plate (300mm height) |
|
| The special performance |
Corrosion protection |
The cargo box shall meet the salt spray test for more than 504 hours (including connecting bolts, welding points and anti-corrosion of paint surface) |
|
| In the rain |
The rainfall intensity is 5mm ~ 7mm/min, and there is no water inflow and leakage after 30min test. |
|
| airtight |
Under the condition that the pressure difference between inside and outside the compartment is 100± 10Pa, the air leakage ratio is less than or equal to 6.3L /h |
|
| Heat insulation |
The average wall temperature of the carriage is 293K ~ 298K, and the total heat transfer coefficient K is less than or equal to 0.5 |
|
