The multipurpose dust suspprenssion vehicle adopts fully intelligent electronic control operation, vehicle spray system, mixing function, and rotating arm function. The heating function bicycle flow meter and other functions except the chassis and water tank self-priming and self-discharging are all powered by the on-board auxiliary generator set, and the power distribution box reserves an external power connector set.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of water tank truck, water tank, water sprinkling truck and portable water truck, etc. in China since 2004s. With many years' experience in manufacturing, Chengli Special Automobile Co., Ltd. could supply 4*2 water truck, 4*4 water tank, 6*4 water truck, 8*4 water tank, 6*6 water tank, etc. And the water trucks brands includes dongfeng water truck, ISUZU water truck, FAW water tank, Foton water truck, Forland mini water truck, Yuejin water truck, HOWO water truck, North Benz water truck, etc. More information, please feel free to contact with Ms. Anita Deng.
The spraying system of the anti-purpose dust susppression spraying vehicle is equipped with a single-vehicle flow meter (used to measure the amount of dust suppressant sprayed on each train skin.) and can be displayed on the man-machine interface in the cab. It can view the spray flow rate of each train and each cargo box in real time, and The data sheet can be printed out. The spray system is equipped with a hook stop spray system (contact induction spray, spray stop between two train skins) and has the hook stop spray function on the left and right sides, which can achieve uniform spraying on the surface of the coal seam during spraying, suitable for different models, No spilling phenomenon, spray arm with vehicle number recognition and recording function. (The whole vehicle spray system, bicycle flow meter and vehicle number recognition and recording functions are all connected and reflected on the smart computer screen.)
If you're interested in our water spraying truck, please send email to truck0011@163.com or talk to Anita by Whatsapp: 0086 13329899995
Website: www.trucksinchina.com

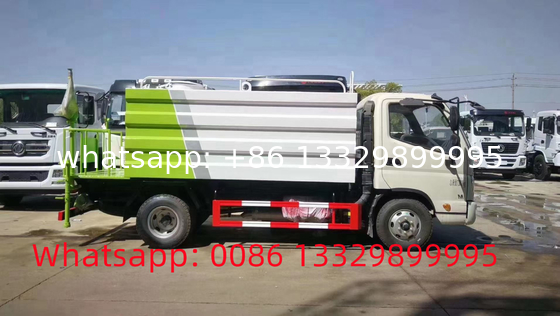

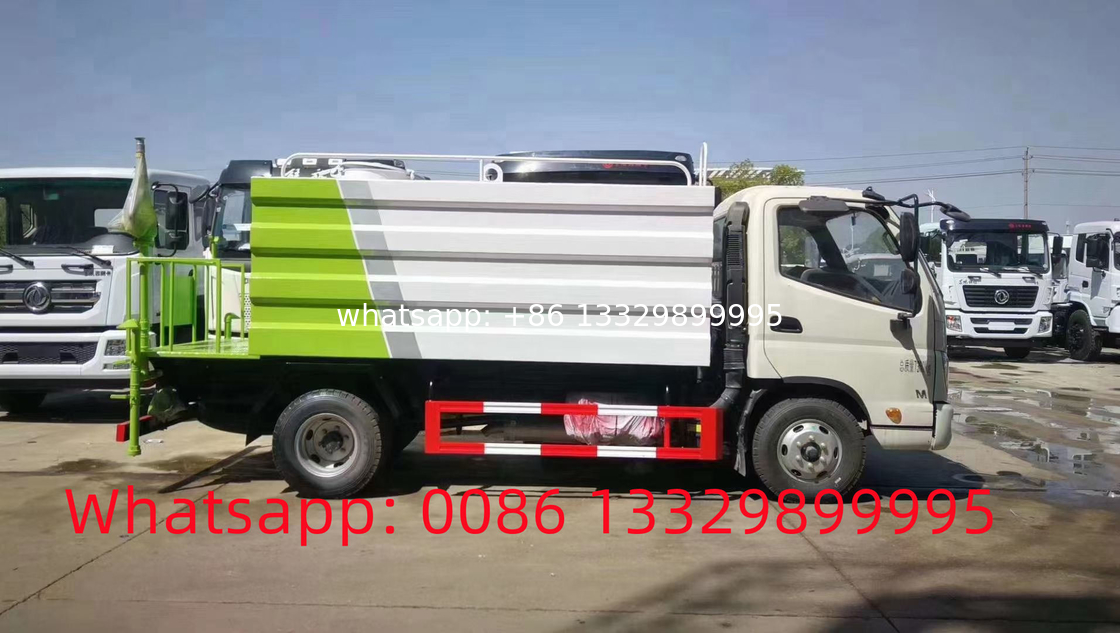

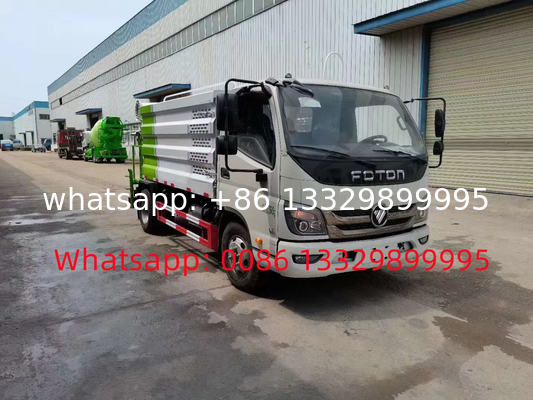

main technical parameters of CLW brand multi-purpose dust suppression spraying car truck is as below.
| Vehicle model |
AUMARK-T33 |
| Cabin |
Single row/W1800/left rudder |
| Whole vehicle main dimensions |
Overall dimensions (LxWxH)mm |
5875×1915×2230 |
| Wheel base(mm) |
3360 |
Weight data |
Curb weight(kg) |
2100 |
| Gross vehicle weight(kg) |
4485 |
| Persons in cab |
3 |
| Whole vehicle main performance |
Max. speed(km/h) |
95 |
| ENGINE |
Model |
BJ493ZLQV1 |
| Emissions standards |
EuroⅢ |
| Displacement(L) |
2.771 |
| Rated Power(kw/rpm) |
80 |
| Max torque (N.m/rpm) |
280 |
| Gearbox |
Model |
JC5-28 |
| Front axle |
Type/Mainreducetion ratio |
2.2T |
| Rear axle |
Type/Mainreducetion ratio |
5.0T/6.142 |
| Suspension |
Front suspension/Leaf spring number |
3+1 |
| Rear suspension/Leaf spring number |
6+7 |
| Brake system |
Service brake |
Drum pneumatic braking |
| Parking brake |
Central drum brake |
| Auxiliary brake |
Engine exhaust brake |
| Wheels and tyre size |
6+1/( 7.00R16) |
| |
| Tank |
Volume |
4m³ |
| Dimensions |
Sectional shape: square circle |
| Tank material and thickness |
Material and thickness of tank body: Q235B carbon steel, 4mm; head material and thickness: Q235B carbon steel, 4mm |
| Wave breaker |
Quantity: 2 (no warehouse divided); material thickness: Q235B carbon steel, thickness 3mm |
| Manhole cover |
Quantity: 1; Diameter: 500mm |
| Discharge port |
One free-flow port at the end of the tank; one pressure drain port on the side of the power take-off; an external port diameter of 2.5; one fire hydrant port; |
| Climb the ladder |
Welded independent climbing ladder at the tail of the tank |
| Top guard |
Install protective handrails on both sides of the top of the tank; |
| Level gauge |
The front part of the tank, plexiglass |
| Tube box |
Number: 2; Installation location: one on each side of the tank body
Water diversion pipe: each pipe box has one built-in water diversion pipe, the length is the same as the tank body, with male and female end joints, and the joint specification matches the diameter of the tank body
|
| Water pump |
model |
Hangzhou Weilong self-priming sprinkler pump: 65QZ-40/45N |
| Limited Data |
40m³/h |
| Lift |
45m |
| Water absorption depth |
6.5m |
|
Spraying device
喷洒装置
|
control method |
Manual |
| Spray type |
Front flush, back spray, side spray |
| Sprinkler width |
Not less than 12m |
| Spray gun range |
Not less than28m |
|

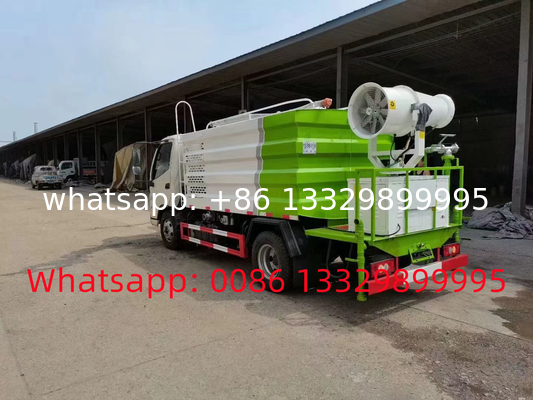

Fog cannon device
雾炮装置
|
Horizontal range (quiet wind) |
30m |
|
|
| Supporting power |
8KW diesel generator |
|
|
| Spray flow |
6-18L/Min |
|
|
| Fog spectrum range |
50-150um |
|
|
| Pitch angle (fan) |
(-5 to 60°) |
| Rotation angle (fan) |
360° |
| control method |
Up and down: remote control left and right: manual |
| Workplatform |
Platform size |
Subject to actual car |
| position |
Rear of the tank |
| Subframe |
Material |
Made of Q235 carbon steel plate |
