Customized FOTON EST-M 6.1m length refrigerated van truck for chicken seedling transported truck, babychick van carrier vehicle for sale,
Customized FOTON AUMARK 4*2 LHD 6.1m length livestock poultry day old chick transported truck, adopts FOTON AUMARK EST-M 2020mm width LHD one row and a half driver cab, 4800mm wheelbase, YC6A240-33 240 Euro 3 diesel engine, fastgear 8 speed manual gearbox, 5.5T front axle/10T rear axle, 11R22.5 rail tires, air cut braking, manual air conditioner, manual doors and windows, etc.
The dimension(L*W*H) of babychick van box is 6100*2300*2300(mm)’ while the overall dimension(L*W*H) of FOTON AUMARK 220hp diesel refrigerated truck is 9210×2470,2520×3830(mm), Clients choose to install USA CARRIER brand or THERMO KING brand refrigerated truck, the lowest temperature is up to -15 degree.
The cold van body dimension of FOTON AUMARK day old chicks transported carrier is 6100×2300×2300 (mm). The interior and exterior of the van box body with fiber reinforced plastics(FRP), and the middle insulation layers of 80mm thickness PU foam. There are sliding windows and waterproof blind-windows. The air will be from the van body floor ventilation.
Left and right sides of the van body are with 12 sets 40*40 Mesh Plates for the cold air from the reefer. There are several 320*320 electronic ventilator fans mounted on the truck top and the rear door plate. Folding Shelves are for the two sides van body. Both Two sides of the van body with 5 blind-windows; while top mounted sky-window. Three lines of ventilator Air Ducts mounted on the van floor. The reefer choose high quality China made engine-powered refrigerator( the lowest temperature inside the cold room box up to -10℃, adjusted at the driver cab). The heating system is selective.
The main technical parameters of FOTON 6.1m length bbaychick transported van vehicle is as below.
| Overview |
| Product name |
FOTON cargo van box vehicle for chicken seedling transportation for sale |
| Dimension(L*W*H)(mm) |
9210×2470,2520×3830(mm) |
| Total mass(kgs) |
15795 |
| Rated payload(kgs) |
10T |
| Kerb weight(kgs) |
7605 |
| Driver cab seats |
3(driver included) |
| Approach/departure angle(°) |
21/10 |
| The parameters of chassis |
| Truck chassis manufacturer |
FOTON |
| Driving type |
4*2 LHD(Left hand drive) |
| Wheelbase(mm) |
4800 |
| Gearbox |
fastgear 8 speed manual gearbox, |
| Front/rear track(mm) |
1930/1680 |
| Tyre specification |
11R22.5 |
| Front/rear suspension(mm) |
1365/2845 |
| Leaf Spring number |
9/10+10 |
| Driver cab A/C |
YES, manual air conditioner |
| The parameters of engine |
| Engine manufactuer/model |
YC6A240-33 Yuchai |
| Engine rated power |
177KW/240hp |
| Fuel type |
Diesel/oil |
| Displacement/capacity(ml) |
7255 |
| Emission standard |
Euro 3 |
| Cylinders |
6 Cylinders |
| The parameters of van body |
| Van box body dimension(L*W*H)(mm) |
6100*2300*2300(mm) |
| Material |
2.2mm external fiberglass, internal 2mm stainless steel, sandwish 80mm XPS |
| Rubber sealing |
Equipped |
| Van body skeleton rim |
Aluminum |
| Doorframe and locks |
Stainless steel material |
| Lighting |
LED lights |
| Cooling system |
CARRIER reefer unit |
| Ventilations |
Both van body sides total with 4 windows(4*2), ceiling 3 sky windows, ceiling ventilations fans 8 pcs(4*2), rear door ventilations 4pcs, upper sides ventilation vent, floor ventilation vents |
| Shelves |
Two sides and tiltable |
If you're interested in our day old chicks transported truck, please send email to truck0011@163.com or talk to Anita by Whatsapp: 0086 13329899995.
Website: www.trucksinchina.com
More pictures of FOTON EST-M 6.1m length day old chick transported truck is as below.

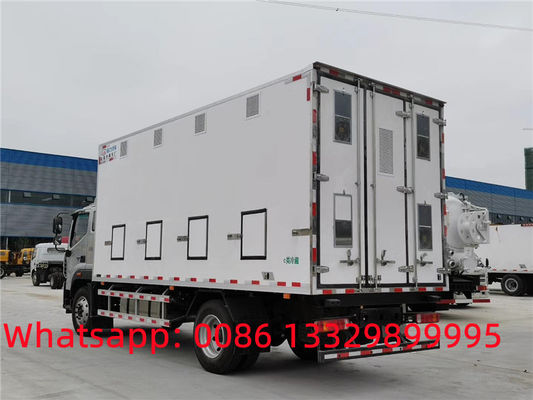

Day old chicks transported vehicle is also called baby chick truck, young chicks transported truck. There are several electronic ventilator fans on the top, and the left-right sides with several slidable windows to keep air ventilated. There is cooling reefer, adjusted the temperature freely, suitable for transporting farm poultry, etc.
There are ventilation and heating system inside the farm poultry transported truck. There are several electronic ventilator fans (according to the length of the insulation van) on the top for ventilating, assuring offering enough oxygen for the baby young chicks/ducks/ gooses in the van. There are several windows (according to the length of the chick box body) for ventilating, heating, oxygen-offering.
It is mainly for professional transporting day old chicks, day old ducks, baby goose, flowers, seedlings, etc. a good tools to improve efficiency and reduce transporting cost.
