Customized FAW Brand garbage compacted garbage truck for sale
The volume of the compactor garbage van is 8m3,and with the wastes loading capacity of about 11tons. The wastes van of CLW Brand compacted garbage truck adopts high quality China standard light duty steel, solid arc-shape box body of strengthen beam and steel plate weled.
Operation way: PLC control system; loading and discharging way: rear loading wastes bins mechanism; compacting way: Bi-directional compression; wastes compacting density≥0.8T/m³; one working circle time for loading and discharging ≤30s; max compressing force≥150KN; max passing force≥180KN.

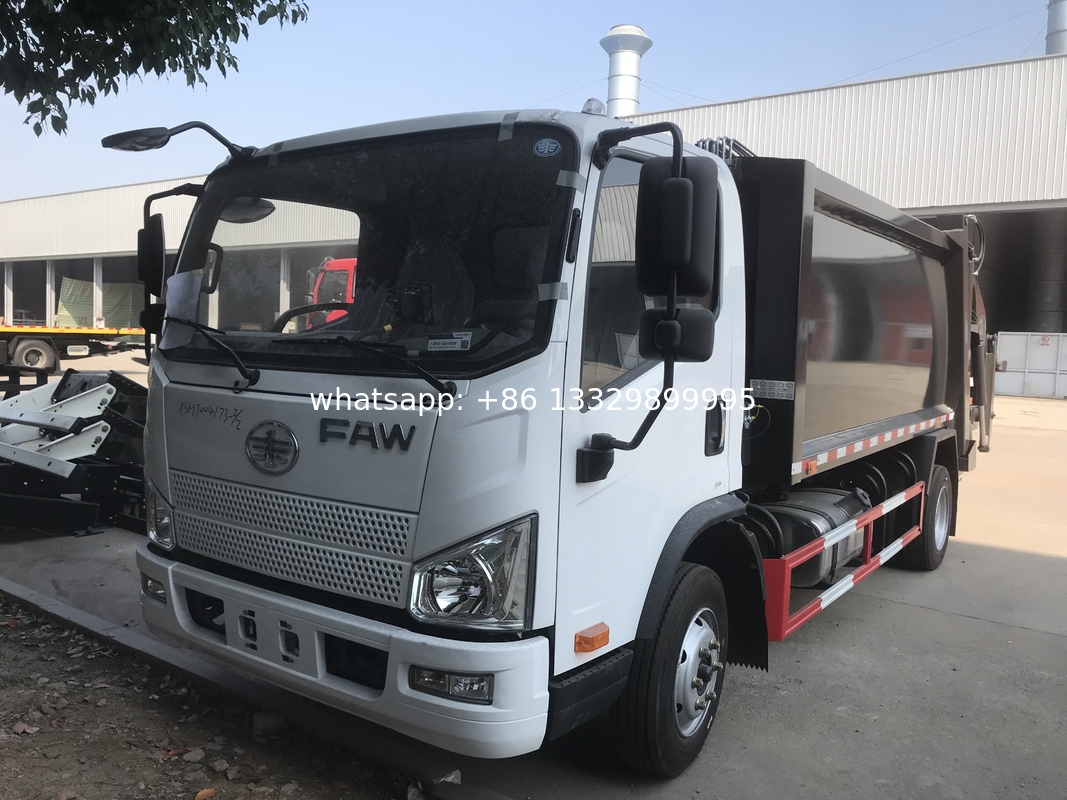

More pictures of FAW Brand 8cbm compacted garbage truck is as below.
More information, please feel free to contact with Ms. Anita.
WHatsapp/Wechat/Mob.: 0086 13329899995
Website: www.trucksinchina.com
Email: truck0011@163.com
Main technical parameters of FAW brand 8cubic meters garbage compactor truck is as below
1 |
Product name |
FAW brand 8cbm garbage compactor truck |
| 2 |
Truck chassis model |
CA |
| 3 |
Overall dimension(L*W*H) |
7330×2300×2700 |
| 4 |
Total mass(kgs) |
11995 |
| 5 |
Curb mass(kgs) |
6500 |
| 6 |
Rated mass(kgs) |
5300 |
| 7 |
Volume |
8m3 |
| 8 |
Real loading capacity |
About 6,000kgs |
| 9 |
Max speed |
100kw/h |
| 10 |
Wheelbase |
3800 |
| 11 |
Axle nos. |
2 |
| 12 |
Driver cab |
FAW TIGER VH flathead single row driver cab, |
| 13 |
Approach/departure angle(°) |
20/14 |
| 14 |
Front/rear suspension (mm) |
1155/2075 |
| 15 |
Front/rear tread(mm) |
1738/1740 |
| 16 |
Tire specification |
8.25R20/16PR (6+1) |
| 17 |
Steel Spring |
7/10+3 |
| 18 |
Engine model |
YC4D130-33 |
| 19 |
Rated power |
96KW/130hp |
| 20 |
Displacement(ml) |
4.214 L |
| 21 |
Fuel type |
Diesel |
| 22 |
Emission standard |
Euro 3 |
| 23 |
Gearbox |
6T115 6 forward gears with 1 reverse gear, manual type |
| 24 |
Color |
Different color upon request |
| 25 |
Wastes van |
Solid arc-shape box body of strength beam and steel plate welded |
| 26 |
Wastes van material |
High quality China standard light duty steel |
| 27 |
Operation way |
PLC control way |
| 28 |
Loading and discharging way |
Rear overturning mechanism |
| 29 |
Compacted way |
Bi-directional compression |
| 30 |
Wastes compacting density |
≥0.8tons/m3 |
| 31 |
One working circle time for loading and discharging |
≤30s |
| 32 |
Max compressing force |
≥150KN |
| 35 |
Max passing force |
≥180KN |
CLW Brand garbage compactor trucks are also called rear loader garbage truck, wastes collecting vehicles, etc. This kind of garbage truck is a kind of special purpose vehicle, mainly used for collecting, transporting and discharging bagged wastes, barreled wastes, bulk household wastes in towns and cities, etc.The wastes is pressured and pushed into the wastes van by the truck mounted wastes propeller (also called negative pressure mechanism), so that making the wastes distributing into the tank evenly and higher density and till full.The collecting and transporting way of the garbage compactor truck adopts widely all over the world. The function of the entire special device adopts the truck engine as power, realizing by hydraulic mechanism manual or electronic control.The wastes van and the loader, which is also called wastes tan and sewer tank, adopting high quality carbon steel with full-sealed welding structure, with the advantages of high strength, light weight, non second pollution, etc. More information, please contact with Ms. Anita.
