FAW 4*4 LHD all wheels drive fuel tanker truck for sale, good price FAW fuel bowser tanker truck for sale
Fuel tanker truck (also called fuel dispensing truck ,oil transfer truck ,diesel truck ,petrol fuel tanker ,crude oil tanker truck , refueler tanker truck ,diesel fuel tanker ,oil tanker ) is used to transport oil , diesel , gasoline ,kerosene,etc. It can be divided into many compartments to transport different types of fuels ,lubricant ,crude oil ,alcohol. Oil pump equipped ,with pump in pump out function.
The fuel tank truck is equipped with oiling machine, fueling gun, sea valve,European standard tank mouth, shell cover, self-priming pump,gear pump,double pump,oil absorbing,transmission shaft,special gear pump,pipe system,out and in oil hole,attendant's cabinet,safeguard system and so on.
1. Fuel truck consists of tank car body, power take-off, self-flow valve, two oil pipes, fire extinguisher, ladder, gear oil pump, oil-resistant pipe, pipe network system and fire extinguisher.
2. The fuel tank body or is made by high-quality carbon steel sheet. The large-scale coiling machine is used for one-time forming made fuel tanker is more beautiful and the sealing performance is more excellent.
3. The shape of fuel tank is elliptical or trapezoidal, etc. The tank can be divided into single or multiple warehouses according to user requirements. In order to prevent corrosion, the outer surface of the can is coated with anti-rust paint and decorative paint.
4. The container indicator is installed in the middle of the fuel tank side. When adding oil to the tank or transferring oil to the outside, the inner volume of the tank can be directly indicated.
5, according to your needs, our technical man will made anti-corrosion treatment of tank car tanks, converted into chemical vehicles used to transport industrial chemical raw materials.
6, fuel tank truck optional computer tax control tanker, flow meter, ladder and other special configuration, the tank tail sprayed with high-quality reflective signs to provide security for your night driving.
FAW TIGER VH flathead single row driver cab,
3860mm wheelbase,
YC4D130-33 yuchai 130hp diesel engine, 96KW/130hp, 4214ml displacement, Euro 3 emission standard
6T115 wanliyang 6 speed manual gearbox, Φ330 clutch
GM-TRACAR25 diverter, jieman brand
GMFARQ25760-FAW jieman brand front drive steering axle(2.7T), 340 Punch welding bridge rear axle(7T),
7.50R16 tires, Chinamade linglong brand
Maintenance-free storage batteries, air cut braking,with PTO(flange), 80L steel oil tanker, leaf spring pieces 10/10+9
If you're interested in our FAW 4WD fuel tanker truck, please feel free to contact with Ms. Anita.
Whatsapp/Wechat/Mob.: 0086 13329899995.
Website: www.trucksinchina.com

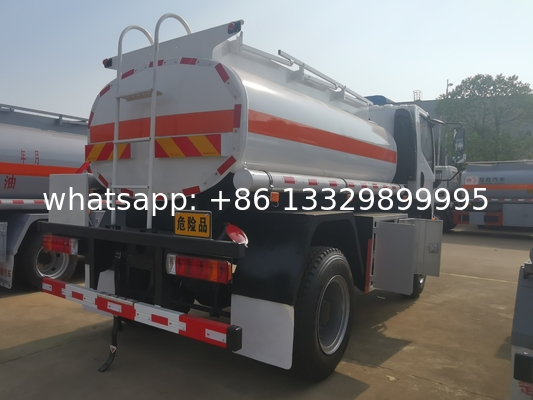

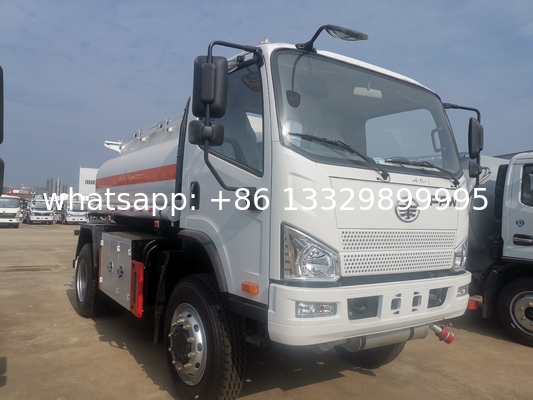

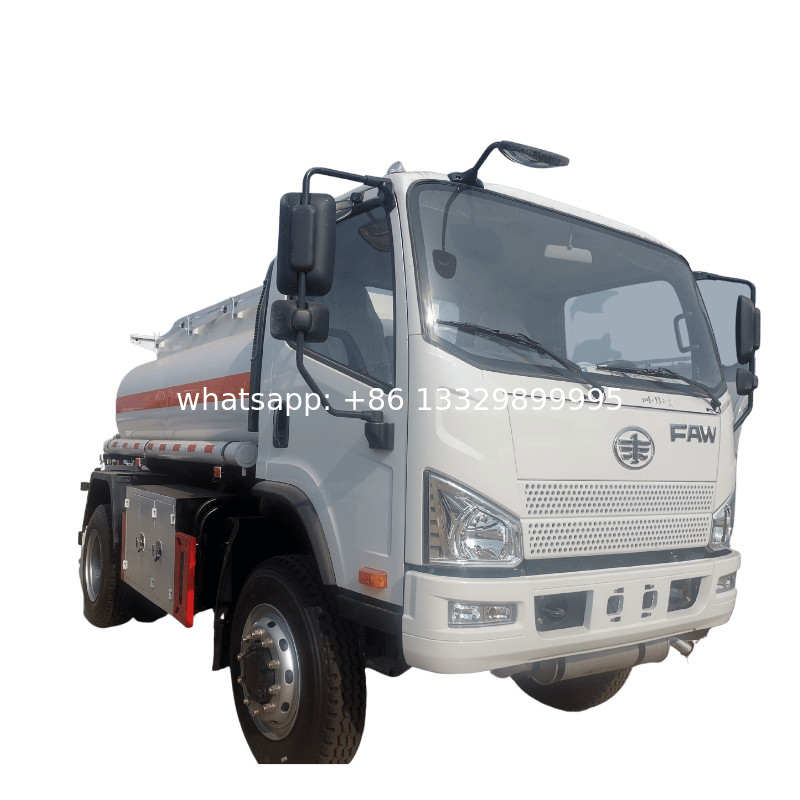

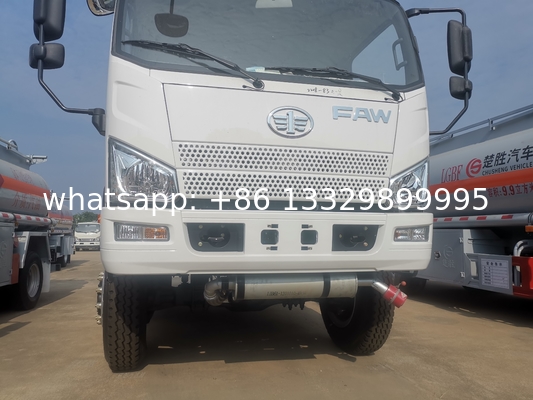

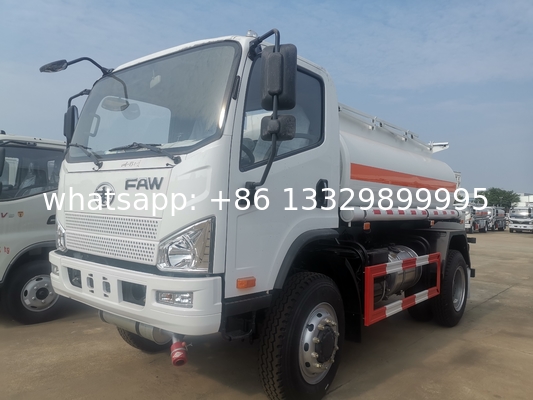

More pictures of FAW brand 4*4 4WD 6,000L oil tanker truck is as below.
Main technical parameters of FAW Brand 6,000Liters fuel tanker truck is as below.
| Main technical parameters |
| Faw 4*2 LHD/RHD 6000Liters fuel tanker truck for sale |
| Total mass(Kg) |
8495 |
Tank volume(Liters) |
6000 |
| Rated mass(Kg) |
3800 |
Overall dimension(mm) |
6900×2250×2900 |
| Curb mass(Kg) |
4500 |
Driver cab person |
3 |
| Approach/departure angle(°) |
17/14(°) |
Front/rear suspension(mm) |
1330/1820(mm) |
| Axle nos. |
2 |
Wheelbase(mm) |
3860 |
| axle load (Kg) |
2890/5605 |
Max speed (Km/h) |
79 |
| Chassis main parameters |
| Chassis model |
CA1080 |
Chassis manufacturer |
FAW Company |
| Tyre specification |
7.50R16 rail tires |
Tyre nos. |
6+1 |
| leaf spring |
10/10+9 |
Front tread(mm) |
1810(mm) |
| Fuel type |
Diesel |
Rear tread(mm) |
1740(mm) |
| Transmission |
6T115 wanliyang 6 speed manual gearbox |
Air-conditioner |
Yes, |
| Power steering |
Yes |
Front/rear bridge |
2.7tons/7tons |
| Clutch model |
Ф330 |
Truck frame |
237×65×7 |
| brake |
Air brake |
Driver cab |
FAW VH flat-head single row driver cab |
| Emission standard |
Euro 3 |
| Engine model |
Manufacturer |
Displacement (ml) |
Power (Kw) |
| YC4D130-33 |
Yuchai |
4214 |
96 |
| Engine type |
4cylinders in line inter-cooled diesel engine |
| other Equipment or performances |
1The fuel tanker shape is ellipse, adopts high quality GB carbon steel material, the oil tanker volume is 8000Liters. |
|
1, 1* compartment and several anti-wave sheets
2, 1* carbon steel oil pump (pump-in and pump-out)
3, 1* Euro standard manhole,
4, 1*sub-sea valve(aluminum ally emergency shutoff device)
5, 1*oil unloading valve(without eyepiece)
6, 1*oil-gas recovery system
7, 1*anti-overflow probe pedestal
8, Tanker top-mounted manual folded carbon steel guardrail/ top mounted anti-slide sidewalk,
9,2* firefighting extinguishers
10, Sound and light alarm system
11,1* toolbox, 1*unloading box,1* fuel dispensing machine cabinet(below 15cbm)
12, Stainless steel hose box, Male and female plug lamps and lanterns,Plastic barrel cover and fire extinguisher cover,Punch the ladder step
13, simple reflective logo
|
| 15, The truck is painted metallic coating. |
