CLW brand 3.2metric tons mobile skid lpg gas refilling plant for sale, 32000kgs auto mobile Propane Skid-mounted filling station
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of lpg gas pressure vessels in China. With many years’ development, Chengli can manufacture and sell surface/underground lpg gas storage tanks, lpg gas tank semitrailer, lpg gas truck, lpg gas bobtail vehicle, skid lpg gas refilling station, etc.And last year, our CLW brand lpg gas pressure vessels have passed USA ASME standard. That is to say, our CLW brand lpg gas storage tanks can be esxported to USA, European countries.
Welcome more and more clients all over the world to visit our CLW Group and purchase our CLW brand high quality and best price lpg gas pressure vessels.
If you're itnerested in our skid lpg gas station, please feel free to send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat/Mob.: +86 13329899995.
Website: www.trucksinchina.com

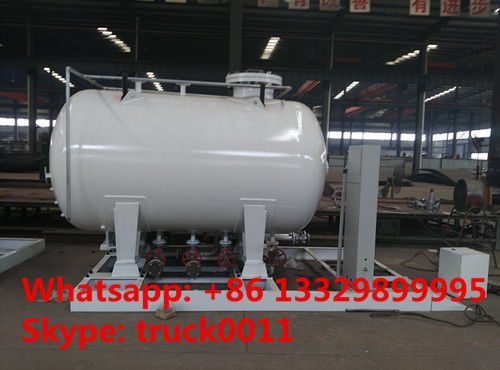

MINI 3200kgs mobile skid propane gas refilling station for sale
The main parameters of hot sale 3200kgs mobile propane gas filling station as below
| |
Mobile skid mounted lpg gas refilling plant for sale (3.2Metric tons) |
| |
Volume of Tank |
8,000L |
| |
Filling Weight |
3192 kg |
| |
Tank Weight |
2540 kg |
| |
Thickness of Shell (mm) |
10 mm |
| |
Thickness of Endplate (mm) |
10 mm |
| |
Tank Diameter (mm) |
1600 mm |
| |
External Dimensions (mm) (length x width x height) |
5070x 1650 x 2910 mm |
| |
Material of Tank and Main Pressure Parts |
Carbon Steel Q345R |
| |
Filling Medium |
Liquefied Petroleum Gas ( Propane) |
| |
Design Pressure |
1.77 MPa |
| |
Corrosion Allowance |
1 mm |
| |
Medium Density |
420-590kg/ cbm |
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. |
| |
|
|

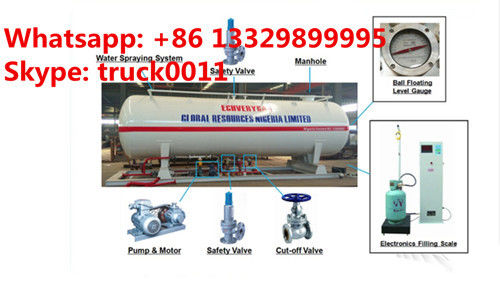

The main parts of skid lpg gas plant as below
| LPG Skid Parts list |
| Item |
Model Number |
Quantity |
| LPG Tanker |
20,000L |
1 piece |
| Pump |
2" inlet & 2" outlet |
1 Piece |
| Explosive-proof Motor |
380V with 220V adapter |
1 Piece |
| Electronic Weighting Scale with filling nozzles |
Can fill 0.5kg to 150kg LPG cylinders |
3 pieces |
| Pipes |
/ |
1 Sets |
| Cut-off Valve |
J41N-40 DN50 |
25 Pieces |
| J41N-40 DN15 |
10 Pieces |
| Safety Valve |
A42F-25 DN50 |
1 Piece |
| Pipe Safety Valve |
A21F-25 DN15 |
1 Piece |
| Level Gauge |
Float ball type |
1 Unit |
| Discharging pipe |
L=4M DN50/DN25 |
1 Piece |
| Shock-absorbing Tube |
L=500mm DN50 |
2 Pieces |
| Flange |
2.5MPaDN15 |
20 Pieces |
| LPG Pump & Motor Specification |
| |
Pump Brand |
Chinese brand lpg gas pump |
| Model |
YQB15-5 |
| Medium |
Liquid petroleum gas |
| Working pressure differential |
≤0.5Mpa |
| Inlet pressure |
≤1.0Mpa |
| Flow Speed |
15.5m3/h |
| Applied Power |
5.5kw |
| Inlet & Outlet Flange |
2”NPT / 2" NPT |
|
Revolution
|
780r/min |
| mass |
166kgs |
| Motor |
Chinese brand |
| Specification |
7.5HP(5.5KW), Explosive Proof,
Dual Frequency 220V to 690V, 50Hz and 60Hz supplies applicable |
| LPG Cylinder electronic Filling Machines Specification |
|
Brand |
Chinese Kaiyuan Brand |
| Model |
BCS-150 |
| Power supply available |
220V 50HZ |
| Rated power |
30W |
| Max weighting capacity |
150kg |
| Mini weighting capacity |
1kg |
| Measurement Precision |
±0.5% |
| Accuracy Level |
Ⅲ |
| Certified Division value |
50g |
| Anti-explosion Rate |
Exhibit II BT4 |
| Weighing station size |
535*425mm |
| Electronic scales No. |
1-3 sets |
skid lpg gas plant with double scales for sale
The LPG product what we can suppy are 5-100m3 lpg tank, lpg storage tank, lpg tanker semi trailers, propane transport trailers for sale, propane tanker trailers for sale, 20m3 lpg skid filling station, 20m3 lpg filling skid station, gas filling station, lpg skid-mounted filling station .
More information, please feel free to contact with Ms. Anita.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
