DONGFENG 4*2 LHD mobile LED fullcolor outdoor advertising vehicle for sale, new dongfeng Mobile LED billboard advertising truck with stage for sale
The overall dimension(L*W*H) of DONGFENG Mobile LED truck:5995*2025*2995(mm)
1, the right side of the driver cab is with high quality P10/P8/P6 HD waterproof and shake-proof full color outdoor screen (screen area: 3840*1792=6.88m2), at the same time the right side screen is with hydraulic lifting stage(stage area: 102) and 4 sets manual/hydraulic outriggers.
2, the left side of the driver cab is with word roller light-box with automatically switching format advertisings; and the exterior with tempered glass.
3, the rear part screen is with single color word screen (screen area: 1280*1440=1.84m2)
4, truck mounted diesel generator adopts high quality OUMA 8KW/15KW diesel generator.
5, truck trim: 5cm composited steel box body frame, FRP material body, wooden floor, 4 sets of waterproof Audio, one set amplifier, intelligent Mechatronics controlling system, Circulating ventilation cooling system, safety intelligent Automatic switching system for inside and outside of the network, high ability Mute generator set, Gigabit flow Media control system.
Remark: the computer is with English words, English operation system and Software playback system.
If you're interested in our mobile LED advertising truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995.
Website； www.trucksinchina.com
Main technical parameters of hot sale dongfeng 95hp diesel mobile LED advertising vehicle with hydraulic elevating and stage as below
| Dongfeng mobile LED vehicle for sale main parameters |
| Product name |
dongfeng Mobile LED truck |
Overall dimension(mm): |
5995x2040x2990 |
| Main screen space(mm): |
3840x1760=6.8㎡ |
Rear screen space (mm): |
1280x1760=1.84㎡ |
| Total mass :(kg) |
4495 |
Approach/departure angle(° ) |
19/18 |
| Front/rear axle(kg) |
1800/2695 |
Front/rear suspension(mm): |
1032/1658 |
| Curb mass:(kg) |
4300 |
Max speed(km/h): |
95 |
| Standard device of dongfeng LED truck |
- Left side is with full waterproof outdoor P10 color screen; and the right side can be with repeated words screen(2-7 pieces of Light painting switches roller box), 50mm compacted steel frame box;
- Interior with cold-roll steel sheets, interior with aluminum diamond plate, waterproof plastic wood ground.
- integration of intelligent Mechatronics controlling system, Circulating ventilation cooling system, safety intelligent Automatic switching system for inside and outside of the network, high ability Mute generator set, Gigabit flow Media control system;
- equips with one piece of Industrial control computer, one set of Broadcast borne power amplifier, one set of control panel, one piece of High performance audio, etc.
|
| Chassis of dongfeng LED truck |
| Chassis model |
EQ1060TJ20D3 |
Fuel type |
Diesel |
| Axle nos. |
2 |
Front tread |
1500 |
| Wheelbase(mm): |
3300mm |
Rear tread: |
1520 |
| Rated person |
3 (driver included) |
Spring |
8/9+5,6/8+4 |
| Tyre nos. |
6 |
Tyre specification |
7.00-16 |
| Gearbox |
5 speed gearbox |
Power steering |
Yes |
| Air-conditioner |
Air-conditioner is selective |
Storage battery |
Camel brand storage battery |
| Axles |
3.4ton front axle/4.2ton rear axle |
Driver cab |
Dongfeng RHD single row driver cab |
| Engine of LED truck for sale |
| Engine model |
Manufacturer |
Displacement(ml) |
power(KW) |
| CY4102-C3F |
Chaochai CY4102-C3F |
3856 |
70Kw/95hp |
| Emission standard |
Euro 3 |
More pictures of hot sale dongfeng 4*2 LHD mobile LED advertisng vehicle as below

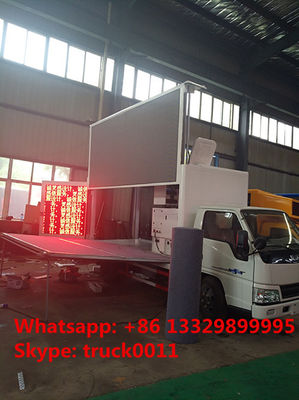

dongfeng brand Mobile LED truck for sale
Mobile outdoor LED advertising truck with elevating side scree and 10m2 stage for sale
high quality and best price DONGFENG brand outdoor LED screen advertisng vehicle for sale
