FOTON 4*2 LHD 170hp refrigerated truck for RENHE Medicine group for sale, factory sale best price 10tons cold room truck
The refrigerator van from Chengli Special Automobile Co., Ltd. adopts both exterior and interior with stainless steel sheets, and the middle is PU slices with vacuum negative pressure one-formed casting, and the thickness is 8mm, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure. The refrigerated van has the advantages of high strength; strong anti-corrosion and aging resistance, low heat-conducting property, non-pollution, non-easy destroy, etc. And the baseboard is aluminum alloy anti-skipping diamond board, which assuring the insulation ability and the compact resistance of the baseboard. There are aluminum alloy ventilation slots are chosen to install on the baseboard. The frame of standard rear double doors adopts the stainless steel structure frame with light mass and perfect corrosive resistance, etc. The door edgings frames are sealed with the imported high quality epdm rubber, making sure the van insulation stability. Door edgings, door locks and accessories use stainless steel materials.
If you're interested in our cold room truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com
main technical parameters of hot sale FOTON Aoling 7-10tons cold room truck as below
| Main parameters |
| Product name |
Foton Aoling refrigerated truck |
Overall dimension(L*W*H)(mm): |
8480 × 2370,2420 ×3600,3700,3750 (mm) |
| Axle load |
3980/7395kgs |
Cargo body dimension(L*W*H)(mm): |
6090*2160*2210 (mm) |
| Total mass(kg) |
11375(kg) |
Approach/departure angle (° ) |
23/10 (°) |
| Rated mass(kg) |
4990 (kg) |
Front/ rear suspension(mm): |
1195/2585 (mm) |
| Curb mass(kg) |
6300 (kg) |
Max speed(km/h): |
90 (km/h) |
| Chassis main parameters |
| Chassis model |
BJ1129VFPEG-FA |
Axle nos. |
2 |
| Wheelbase(mm): |
4700 (mm) |
Seated person |
2,3 |
| Seated person |
2,3 |
Rear tread(mm): |
1800 (mm) |
| Tyre specification |
6+1*8.25R20 |
Spring |
10/10+8 |
| Gearbox |
6 speed gearbox |
Driver cab |
FOTON AOLING one row and a half driver cab with original air conditioner and power steering |
| Tyre specification |
9.00R20 |
| Engine main parameters |
| Engine model |
Manufacturer |
displacement(ml) |
Power (kw) |
|
ISF3.8s4168
|
FOTON CUMMINS |
3760 |
125 |
| Emission standard |
Euro 4 |
Fuel type |
Diesel |
| Insulation body van box main parameters |
| |
box inner dimension(L*W*H) |
6090*2160*2210 |
| Cold room |
Box Side |
Exterior and interior with Fiberglass-Reinforced Plastics, and the middle with 80mm PU slices with vacuum negative pressure one-formed casting as the insulation layer, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure. |
| Box Floor |
Baseboard adopts aluminum alloy anti-skipping diamond board, which assuring the insulation ability and the compact resistance of the baseboard. |
| Doors |
Frame of standard rear double doors adopts the stainless steel structure frame with light mass and perfect corrosive resistance, etc.
The door edgings frames are sealed with the imported high quality epdm rubber, making sure the van insulation stability.
Door edgings, door locks and accessories use stainless steel materials.
|
| Cooling unit |
Refrigeration unit |
Choose high quality China-made or USA brand Preservation cooling unit/ frozen cooling unit, the temperature can be adjusted from zero degree to 18 degree below zero, etc. And the cooling unit can be adjusted at the driver cab. |
| Refrigerated temperature |
-18° to 0° |
More pictures of hot sale FOTON Aoling 10tons refrigerated truck as below

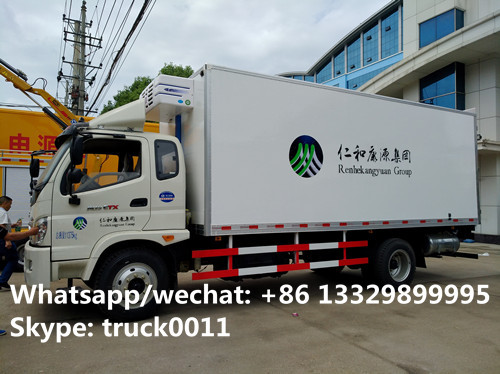

FOTON Aoling refrigerated truck for RENKE GROUP for sale
Chengli Special Automobile Co., Ltd. is the leading mnaufacturer and supplier of refrigerated trucks in China. With many years' development, we can offer ISUZU brand refrigerated truck, HOWO brand refrigerated truck, dongfeng brand reefer van truck, forland brand cold room truck, etc. More information, please feel free to contact with Ms. Anita Deng.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
