dongfeng tianjin 170hp/190hp gas canisters transporting vehicle for sale, best price stake van truck for gas cylinders
Stake truck, also known as van, mainly used for sealing all kinds of transport items, special types of van can also transport dangerous chemicals. This kind of stake is especially designed for transporting lpg gas cylinders, danger checmicals ,etc.
Product Notes:
1. Chassis maunfacturer is Dongfeng Motor Co.,Ltd
2 .Engine modle and brand: high quality Dongfeng Chaoyang Diesel Engine Co., Ltd
3. Factory direct sale
4, new designed for carrying gas cylinders, etc.
If you're interested in our truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995.
Website: www.trucksinchina.com
Main technical parameters of hot sale dongfeng tianjin 4*2 domestic gas canister transported stake truck as below
| Product Name |
Dongfeng duolika 4*2 LHD/RHD stake van truck for transporting domestic
gas cylinders for sale
|
|
| Overall dimension(L*W*H) |
9000*2500*2910(mm) |
|
| Cab |
rated passengers 3 |
|
Chassis |
Brand |
Dongfeng |
|
| Chassis model |
DFL |
|
| Drive type |
4*2 |
|
| Tyre Specification |
9.00-20 |
|
| Tyre Number |
6+1 tyres |
|
| Braking System |
Air brake |
|
| Transmission |
Manual , 5 forward and 1 reverse |
|
| Engine |
Model |
B170 33/ B 190 33 |
|
| Fuel type |
Diesel |
|
| Horse Power(kw/hp) |
125/170; 140/190 |
|
| Displacement(ml) |
5900 |
|
| Emission standard |
Euro 4/3 |
|
Dimension & weight |
Overall dimension (L*W*H/mm) |
9000*2500*2910 |
|
| Stake van box body dimension(L*W*H) |
6600*2400*600 |
|
| Wheelbase(mm) |
4700 |
|
| Axles No. |
2 |
|
| Curb Weight(kg) |
7005 |
|
| Max Speed(km/h) |
80 |
|
| Stake van box body |
Stake van box body dimension(L*W*H) |
6600*2400*600 |
|
| Baseboard |
3mm thickness carbon steel material |
|
| Side sheet |
2mm thickness carbon steel material |
|
| Front face |
High quality Corrugated sheet |
|
| Chosen part |
Hydraulic tail plate
|
Choose to install rear hydraulic tail plate for loading and discharging |
|
| |
| Equipment |
1. Optional front cover, front bumper, front combination lamp with optional chassis, the height of the bottom of the compartment floor to the top of the warehouse gate is 1000mm.
2. Side and rear lower protective device material for the Q235, and the frame with bolts. |
|

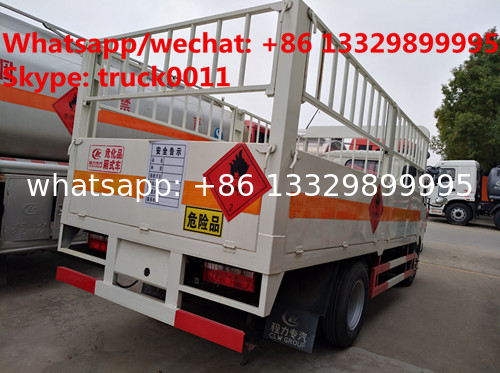

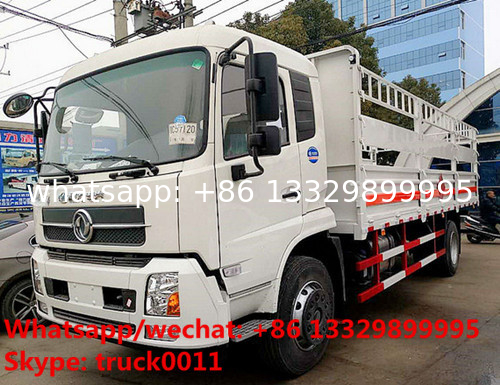

More pictures of hot sale dongfeng tianjin 170/190hp diesel gas canisters carrying vehicle as below.
Gas cylinder transport truck is also called inflammable gas transport van truck, gas cylinder transport van truck,etc. It consisted of truck chassis, van box body. The chassis is with ABS, steering wheel, front exhaust pipe, speed limiter,etc.which is special purpose for hazardous article transportation. The external of the box body is cold-rolled plate,middle is insulation and flame retardant materials and inner is aluminum. The side is with natural ventilation window, as well as safety guard and band to fix the goods. The top is with gas induction alarm which is used to sense if there is any gas leakage. The anti-static rope and extinguisher is also equipped. Our CLW gas cylinder transport truck is very safe.More information, please feel free to contact with Ms. Anita.
