Factory sale best price RHD 170hp diesel road brushing sweeping vehicle for sale, Cheapest price Dongfeng street sweeper truck for sale
The road sweeper trucks manufactured are with 4 sets of sweeping brushes, JMC auxiliary engine, Italian imported motor, Schneider Electric switches, Taiwan Solenoid valves, maintenance-free and self-disconnect type clutch, maintenance-free fan, stainless steel water tank, stainless steel wastes van, rear part LED arrow lamp, manual portable pump Emergency system, etc. The rotation mechanism of the front sweeper arm adopts high-tech rear-resistant work spacer sleeve, without buttering, precise cold-bending seamless hydraulic oil pipes, etc.
This model of road sweeping truck is specially designed for airport runway since 2007s. As far as we know, the requirement of the airfield runway is so strict, smaller questions may cause airport accident. This Dongfeng 153 airport road sweeper truck can sweep all the metallic chips, etc. China airports, such as Wuhan Tianhe airport and Huangpu airport adopt dongfeng 153 airport sweeper trucks. They are very satisfied with this dongfeng 153 street sweepers. And also more and more clients around the world come to our CLW GROUP to purchase our high quality and competitive price road sweeper trucks.
If you're interested in our road sweeper truck, please kindly send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com

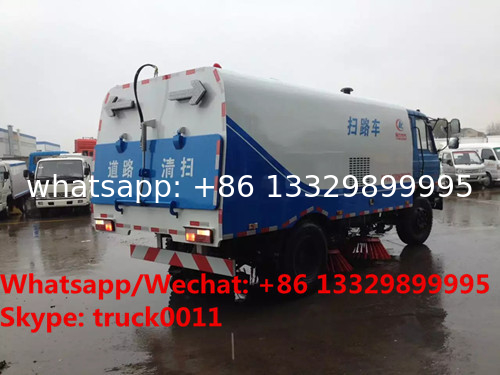

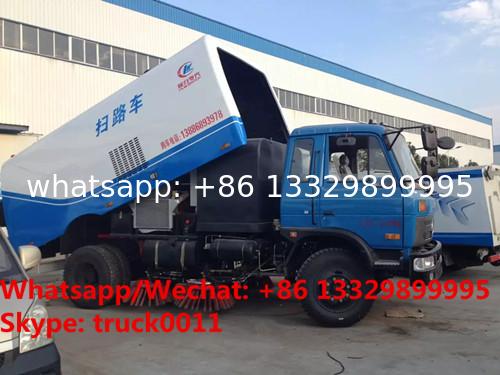

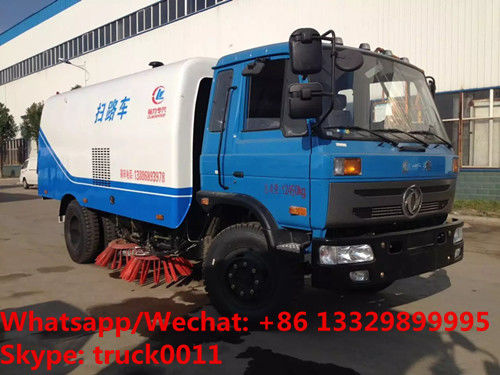

More pictures of CLW Brand dongfeng 145 4*2 RHD 170hp diesel road sweeper truck manufactured by Chengli Special Automobile Co., Ltd. as below.
Dongfeng 145 4*2 RHD 170hp diesel road sweeper truck for sale(2.3m3 water tank+6m3 dust tank)
High quality and competitive price dongfeng RHD mobile road cleaning vehicle for sale
main devices of dongfeng 4*2 RHD road sweeper manufactured by Chengli Special Automobile Co., ltd. as below.

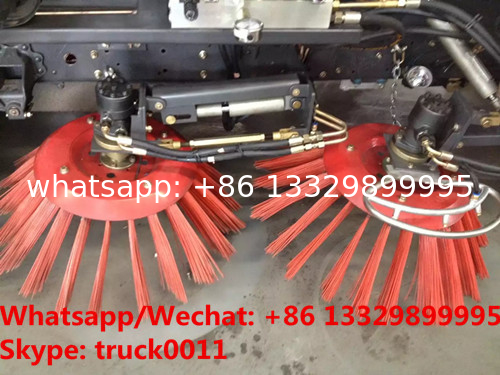

4 sets * road sweeping brushes; CUMMINS auxiliary engine; DALI motor; Schneider control switches; Taiwan solenoid valve groups; Maintenance-free self-detaching clutch; Maintenance-free fan; stainless steel water tank + stainless steel dust tank; Tail LED arrow light； Manual pump emergency system；Brush arm rotation mechanism with high-tech wear-resistant engineering spacer; butter-free; Precision cold bending seamless hydraulic hose.
Dongfeng 145 sweeper truck for sale
| 1 main parameters |
| Product name |
CLW5110TSL3road sweeper truck |
Remark |
| Chassis model |
EQ1110 |
|
| Wheelbase |
3950mm |
|
| Front/rear suspension |
1250/1800 (mm) |
|
| Engine model |
Truck chassis engine |
B170 33 |
|
| Auxiliary engine |
B140 |
|
| Output power |
Truck chassis engine power |
125KW/170hp |
|
| Auxiliary engine power |
103KW /140hp |
|
| Max Gradient |
30% |
|
| Emission standard |
Euro Ⅲ |
|
| Outside-automobile noisy in the accelerating |
≤84dB(A), meeting the noisy of Second stage requirements |
|
| Max speed |
95 km/h |
|
| Approach angle |
19° |
|
| Departure angle |
12° |
|
| Weight |
Curb weight |
6800 (Kg) |
|
| Max total weight |
11495kg |
|
| Rated weight |
4500kgs |
|
| Dimension |
Overall dimension(L×W×H) |
7000X2480X3000(mm) |
|
| Mini ground clearance |
240mm |
|
| Sucking and sweeping working |
Sweeping efficiency |
≥95% |
|
| Max sucking granularity |
120mm |
|
| Sucking-sweeping width |
2.8-3.0 m |
|
| Max sweeping ability |
60000 m2/h |
|
| Extension dimension of dish brush |
≥400 mm |
|
| |
Sucking disk driving speed |
3-20km/h |
|
| Tanker |
Water tank volume |
2.3m³ |
|
| Material |
Stainless steel |
|
| Wastes van |
Wastes van loading capacity |
6 |
|
| Open angle of the discharging door |
≥45° |
|
| Material |
Stainless steel |
|
| Hydraulic system |
Type |
Open-type, electronic-control |
|
| Main units |
Gear pump, hydraulic motor, hydraulic cylinders, solenoid valve, |
|
| System pressure |
16MPa |
|
| Hydraulic oil tank volume |
60L |
|
| Oil temperature |
60 ˚C |
|
| Electronic |
Type |
DC24V |
|
| voltage |
24V |
|
| Storage battery |
24V(2 sets of 12V in series) |
|
| Water sprinkling system |
Main units |
Electronic diaphragm pump, water filter, nozzles, |
|
| Sweeping disks device |
Type |
4 sets of sweeping disks middle-installed driving by hydraulic motor;
The right-front one can work separately, with the function of dodge and repeat working
|
|
| Diameter |
850mm |
|
| Angle |
ante version:4-6 °; extroversion: 4-7° |
|
| Sucking disk |
Tyre |
Single sucking, hydraulic-control, spring s |
|
| Sucking diameter |
200mm |
|
| Other device |
Rear part |
With LED arrow indication light |
|
| |
|
|
|
|
2, spare parts
| Item |
Name |
Nos. |
Remark |
| 1 |
fire fighting hose |
1 |
For adding water |
| 2 |
fire fighting wrench |
1 |
For disassembling fire hydrant |
| 3 |
Manual rocker for hydraulic pump |
1 |
For manual starting the hydraulic pump |
| 4 |
Spare tyre(with the truck) |
1 |
|
3, spare parts
| Item |
Name |
Nos. |
|
| 1 |
Brushing |
80 |
|
| 2 |
weather-strip of fan |
1 |
|
| 3 |
weather-strip of rear door |
1 |
|
4,imported device
| Items |
Name |
Model |
Country |
| 1 |
Hydraulic motor |
BMR125 |
Item |
| 2 |
Hydraulic valve |
SWH-G02-C4-D2H |
Taiwan |
