Factory direct sale DONGFENG brand RHD 4*2 ROAD sweeping truck, best price DONGFENG brand roac cleaning vehicle for sale,
The main technical advantages of dongfeng ROAD sweeper trucks manufactured by Chengli Special Automobile Co., Ltd. as below
1, the control box is at the driver cab, different electronics is centralized, flexible operation.
2, there are four sweeping disks and sucking working tog, perfect sweeping-sucking performance, and the sweeping disks with anti-collision function.
3, the sweeping brushes at the right side and the left sides can work at the same time, just one side sweeper working.
4, the sweeping cleaning device is with simple, reliable, etc.
5, the garbage vans and the cleaning water van adopts high quality stainless steel.
6, the hydraulic KEY units are imported.
If you're interested in our road sweeper truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com
main parameters of hot sale DONGFENG RHD road sweeper truck manufactured by Chengli Special Automobile Co., Ltd. as below.
| Main parameters |
| Product name |
Dongfeng duolika road sweeper truck |
| Total mass(Kg): |
8495 |
Overall dimension(L*W*H)(mm): |
5980×2140×2500 |
| Rated mass(Kg): |
3100 |
Cargo body dimension (mm): |
×× |
| Curb mass(Kg): |
5200 |
approach/departure angle(° ): |
24/13 |
| Emission standard |
Euro 3 |
Max speed(km/h): |
90 |
| Engine parameters |
| Engine model |
Manufacturer |
Displacement (ml) |
Power (kw) |
| CY4102-C3C |
Chaochai |
3856 |
88 |
| Engine type |
4 cylinders in line, inter-cooling |
| Chassis parameters |
| Chassis model |
EQ1081TJ12D1 |
Fuel type |
Diesel |
| wheelbase |
3800mm |
Axle load(kg) |
3300/5195 |
| Gearbox |
5 speed gearbox |
Axle |
2.4ton front axle/4.2ton rear axle |
| Braking |
Air braking and exhaust braking |
Battery |
Camel Brand battery |
| Driver cab |
Dongfeng duolika 4*2 LHD single row driver cab, RHD is selective |
| Tyre specification |
7.50R16 *6 |
| Sweeping ability |
| Auxiliary engine |
JX493G |
| Engine Power |
57 kW/ 77.5hp |
| Max speed |
≥95km/h |
| Sweeping width |
≥3-3.3 m |
| Clean water tanker volume |
1-1.5m3 |
| Wastes van volume |
3.5-4.5 m3 |
| Working speed |
3～15km/h |
| Max working ability |
50000 m2/h |
| Max sucking particle size |
100 mm |
| Sweeping efficiency |
≥99% |
| Road sweeper truck structure |
The truck is installed with middle 4pcs cleaning brushes, and rear part with suction mouth, so the truck cleaning effect is good and the truck water tanker and garbage box made by SS340 stainless steel.
Garbage box and the water tank is an integral structure, water tank in the dustbin garbage box bottom plate bottom pretilt angle up to 12°, easy to dump clean.
Garbage box is arranged on the top of the guide groove and a larger area of the filtering net, can fully improve the efficiency of dust removal, so that garbage piles evenly, increase effective capacity, reduced due to a blocked filter and the air resistance.
|

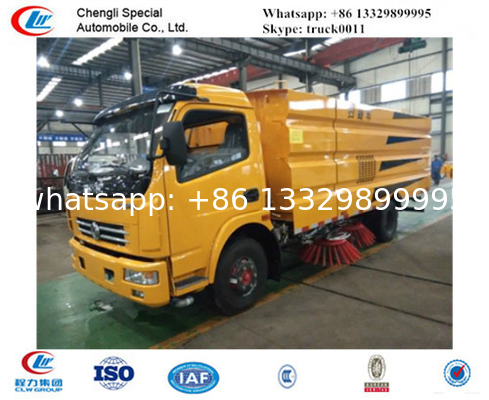

More pictures of dongfeng RHD road sweeper truck as below
hot sale Dongfeng RHD road sweeper truck
best price CLW brand RHD 5tons street sweeper truck for sale
High quality sweeping brushes for sweeper truck
