PROMOTION PRICE! High quality and competitive price forland RHD 110hp diesel street sweeper truck for sale,
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of road sweeper trucks in China. With many years’ development, we Chengli Special Automobile Co., Ltd. could offer ISUZU road sweeper truck, forland street sweeper truck, dongfeng brand road cleaning vehicle, JMC brand road sweeping vehicle, JAC brand street sweeper, FAW brand street sweeping vehicle, etc.
The road sweeper trucks manufactured by Chengli Special Automobile Co., Ltd. are installed with middle 4pcs cleaning brushes, and rear part with suction mouth, so the truck cleaning effect is good and the truck water tanker and garbage box made by SS340 stainless steel.
Garbage box and the water tank is an integral structure, water tank in the dustbin garbage box bottom plate bottom pretilt angle up to 12°, easy to dump clean.
Garbage box is arranged on the top of the guide groove and a larger area of the filtering net, can fully improve the efficiency of dust removal, so that garbage piles evenly, increase effective capacity, reduced due to a blocked filter and the air resistance.
If you're interested in our mobile road brushing cleaning truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com
the main devices of forland 4*2 81KW diesel RHD street sweeper truck manufactured by Chengli Special Automobile Co., Ltd. as below.
4 sets * road sweeping brushes; JMC auxiliary engine; DALI motor; Schneider control switches; Taiwan solenoid valve groups; Maintenance-free self-detaching clutch; Maintenance-free fan; stainless steel water tank + stainless steel dust tank; Tail LED arrow light； Manual pump emergency system；Brush arm rotation mechanism with high-tech wear-resistant engineering spacer; butter-free; Precision cold bending seamless hydraulic hose.

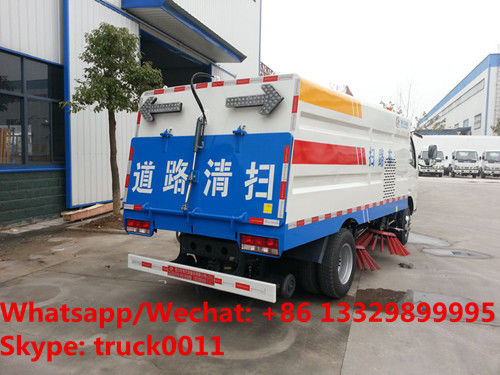

More pictures of Forland 4*2 RHD road sweeping vehicle manufactured by Chengli Special Automobile Co., Ltd. as below.
HOT SALE! high quality and competitive price forland RHD Road sweeper truck
Factory sale cheapest price forland 4*2 RHD 110hp diesel street brushes cleaning vehicle
main technical parameters of forland 4*2 RHD 110hp diesel road sweeping vehicle manufactured by Chengli Special Automobile Co., Ltd. as below.
|
Main technical parameters of forland RHD 81KW/110hp diesel road sweeper truck as below
|
|
Truck model
|
Forland 4*2 RHD road sweeper truck for sale
|
Remark
|
|
Truck chassis model
|
BJ
|
|
|
Wheelbase
|
3360 mm
|
|
|
Front/rear suspension
|
1095/1540
|
|
|
Engine model
|
Chassis engine
|
YZ4102ZLQ
|
|
|
Auxiliary engine
|
JE493-G3
|
|
|
Engine rated power
|
Chassis engine
|
81KW
|
|
|
Auxiliary engine
|
57 kW
|
|
|
Max grade
|
30%
|
|
|
Emission standard
|
Euro Ⅱ
|
|
|
Max speed
|
95 km/h
|
|
|
Approach angle
|
20°
|
|
|
Departure angle
|
12°
|
|
|
Mass
|
Curb mass
|
5040 kg
|
|
|
Total mass
|
7360 kg
|
|
|
Dimension
|
Overall dimension(L*W*H)
|
5950,6200×2000×2380,2590 mm
|
|
|
Mini ground clearance
|
240 mm
|
|
|
Sucking and sweeping
|
Sweeping effectiveness
|
≥95%
|
|
|
Maximum inhalation particle size
|
120 mm
|
|
|
Sucking and sweeping width
|
2.8-3.0 m
|
|
|
Max sweeping ability
|
60000 m2/h
|
|
|
Disc-shaped brush overhang size
|
≥400 mm
|
|
|
|
Driving speed when sweeping
|
3-20 km/h
|
|
|
Water tank
|
Rated volume
|
1.0-1.5 m³
|
|
|
Dust tank
|
Rated volume
|
3.5-4.0 m³
|
|
|
Tipping angle of the dust tank
|
≥46°
|
|
|
Discharging door opening angle
|
≥85°
|
|
|
Hydraulic system
|
Type
|
Open-type, electric controlling
|
|
|
Main units
|
Gear pump, hydraulic motor, hydraulic cylinder, electromagnetic valve
|
|
|
System pressure
|
16 MPa
|
|
|
Hydraulic oil tank volume
|
60 L
|
|
|
Oil temperature
|
60 ˚C
|
|
|
Electrical system
|
Type
|
DC24 V
|
|
|
Voltage
|
24 V
|
|
|
Storage batteries
|
24 V(2 * 12 V series)
|
|
|
Water spraying system
|
Main units
|
Electric diaphragm pump, water filter, nozzle, etc.
|
|
|
Sucking disk
Sucking disk
|
Type
|
Middle-installed two sweeping disks, hydraulic motor drive, adjustable rotated speed, right-front separatedly controlled, Automatic avoidance function
|
|
|
Sucker diameter
|
850 mm
|
|
|
Type
|
Forward leaning:4-6°; Extravert:4-7°
|
|
|
Sucking disk
|
Type
|
single suction, hydraulic control, spring suspension
|
|
|
Diameter
|
200 mm
|
|
| |
|
|
|
|
2, vehicle tools
| List |
Name |
No. |
Remark |
| 1 |
Fire hose |
1 |
Used for filling water |
| 2 |
Fire wrench |
1 |
Used for removing fire wrench |
| 3 |
manual hydraulic pump joystick |
1 |
Used for staring manual hydraulic pump |
| 4 |
Water filter wrench |
1 |
Used for removing water filter |
| 5 |
Spare tire |
1 |
|
3, spare parts
| List |
Name |
No. |
|
| 1 |
Brush |
|
Integral brushing disk |
| 2 |
Fan seal |
1 |
|
| 3 |
Rear door seal |
1 |
|
More information, please contact with Ms. Anita.
Whatsapp/Wechat/Mob.: +86 13329899995
Skype: truck0011
Email: truck0011@163.com; specialtruck01@gmail.com
