Water Tank Truck is known as the water distributor, multi-function sprinkler, sprinkler, tanker, landscape water. Water sprayer is suitable for all kinds of road surface flush, trees, green belts, lawn planting, roads, construction of factories and mines, high-altitude construction rinse. With water spray, dust, high pressure, low, pesticide spraying, guardrail flushing, etc.
1,Front spraying: fitted with 360° rotatable straight nozzles controlled by driver cab. The flush width can reach ＞15m.
2,Rear sprinkling, fitted with 2 rear spraying devices, mainly used to clean the road, make the road clear. When spraying as fan-shaped, the spraying width can reach ＞25m.
3,High spraying: working platform equipped with water cannon, the spraying range can reach 28m, the water cannon can adjust to heavy rain, moderate rain, drizzle or mist, etc. mainly used for landscaping greening, also sued as fire truck in urgency.
4, Side sprinkling: install 2 side spraying nozzles behind the truck, mainly used to spray, water, dedusting of the greening, etc.
If you're inteested in our milk tank truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995.
Website: www.trucksinchina.com
Main parameters of dongfeng 153 multipurpose fire fighting truck manufactured by Chengli Special Automobile Co., Ltd. as below.
| Chassis model |
|
EQ |
| Tank volume |
m3 |
6.4(up to 8cbm ) |
| |
Total mass |
kg |
16000 |
| Rated mass |
6100 |
| Curb mass |
9705 |
| Overall dimension |
mm |
8150×2470×3150 |
| Water tank dimension |
4400×2300×1300(1200mm for installed water pump) |
| Wheelbase |
4500 |
| displacement/power |
ml/kw |
4500ml/132KW(180hp) |
| Engine |
ISDe180 40 cummins |
| Emission standard |
Euro 3 |
| Remark |
Dongfeng 145/153 luxurious driver xab, 5 speed transmission, 2.8ton front bridge/8ton rear bridge, 9.00-20 tyre, 5mm high quality carbon steel, equips with CB10/40 fire fighting pump, PS30 firefighting moniter, and the water range is aup to 50-55m.The truck is with fire fighting coumpling, self-discharging valve, filter and sucking function; rear working platform with air-asssited sprayer( spraying pesticide, dedusting; the horizontal range up to 35-40m, the vertical range up to 20m-25m when no wind). |
The main parameters of the truck mounted air-assisted sprayer
| Special function |
Model |
YL500 model |
Power |
6km |
| Spraying flow |
12-30L/min |
horizontal range |
30-40M |
| Spraying range |
50-150mu |
Vertical range |
20-25M |
| Medicine pan |
50m |
Generator |
Deisel |
| Working effiency |
220-260mu/hour |
Pitch Angle |
-5°～85° |

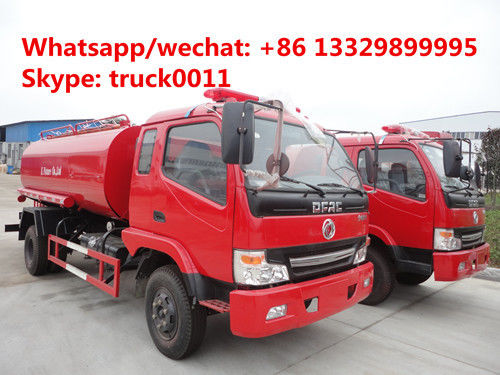

Dongfeng 153 fire fighting water truck with air-assisted spayer
Dongfeng 153 fire fighting water tank with air-assisted sprayer is a kind special vehciels for fire fighting, water sprinkling, pesticide spraying, etc. This truck is with multipurposes, one truck with several uses.
Dongfeng 153 multipurpose firefighting water tank with air-assisted sprayer adopts dongfeng chassis, water tank, PTO, fire fighting pump, fire fighting moniter, rear air-assisted sprayer, etc. mainly used for pesticide spraying, fire fighting, water sprinkling, dedusting, long distance watering, etc.
More pictures of Dongfeng 153 fire fighting water truck with air-assisted spayer
More pictures of dongfeng 153 multipurpose fire fighting trucks as below.
