CLW5060TSLQ4 JAPAN brand ISUZU 4*2 LHD road sweeper truck for sale, best price ISUZU brand 120hp Euro 4 street sweeping truck for sale
The road sweeper trucks manufactured by Chengli Special Automobile Co., Ltd. are with 4 sets of sweeping brushes, Cummins auxiliary engine, Italian imported motor, Schneider Electric switches, Taiwan Solenoid valves, maintenance-free and self-disconnect type clutch, maintenance-free fan, stainless steel water tank, stainless steel wastes van, rear part LED arrow lamp, manual portable pump Emergency system, etc.
The rotation mechanism of the front sweeper arm adopts high-tech rear-resistant work spacer sleeve, without buttering, precise cold-bending seamless hydraulic oil pipes, etc.
If you're interested in our sweeper truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com
main technical parameters of JAPAN ISUZU brand road sweeping vehicle manufactured by Chengli Special Automobile Co., Ltd. as below.
|
1,.the standard device
The road sweeper trucks manufactured are with 4 sets of sweeping brushes, JMC auxiliary engine, Italian imported motor, Schneider Electric switches, Taiwan Solenoid valves, maintenance-free and self-disconnect type clutch, maintenance-free fan, stainless steel water tank, stainless steel wastes van, rear part LED arrow lamp, manual portable pump Emergency system, etc.
The rotation mechanism of the front sweeper arm adopts high-tech rear-resistant work spacer sleeve, without buttering, precise cold-bending seamless hydraulic oil pipes, etc.
|
|
Truck model
|
CLW5060TSLQ4 ISUZU road sweeper truck
|
remark
|
|
Chassis model
|
QL1060A1HAY
|
|
|
Wheelbase
|
3360mm
|
|
|
Front/rear suspension
|
1015/1375 mm
|
|
|
Engine model
|
4KH1-TCG40
|
4KH1-TCG40
|
|
|
JE493-G3
|
JE493-G3
|
|
|
Engine power
|
88 kW
|
88 kW
|
|
|
57 kW
|
57 kW
|
|
|
Maximum climbing angle
|
30%
|
|
|
Displacement emission standard
|
Euro Ⅳ, Euro Ⅲ, Euro Ⅱ
|
|
|
Outside-automobile noisy in the accelerating
|
≤84dB(A),meeting the noisy of Second stage requirements
|
|
|
Max speed
|
105 km/h
|
|
|
Approach angle
|
24°
|
|
|
Departure angle
|
15°
|
|
|
Weight mass
|
4630 kg
|
4630 kg
|
|
|
6435 kg
|
6435 kg
|
|
|
Dimension
|
5750×1980×2500 mm
|
5750×1980×2500 mm
|
|
|
240 mm
|
240 mm
|
|
|
Sweeping and sucking worki
|
≥95%
|
≥95%
|
|
|
120 mm
|
120 mm
|
|
|
2.8-3.0 m
|
2.8-3.0 m
|
|
|
60000 m2/h
|
60000 m2/h
|
|
|
≥400 mm
|
≥400 mm
|
|
|
|
3-20 km/h
|
3-20 km/h
|
|
|
Tank
|
1.0-1.5 m³
|
1.0-1.5 m³
|
|
|
Wastes van
|
3.5-4.0 m³
|
3.5-4.0 m³
|
|
|
≥45°
|
≥45°
|
|
|
Hydraulic system
|
Type
|
Open-type, electronic-control
|
|
|
Main units
|
Gear pump, hydraulic motor, hydraulic cylinders, solenoid valve,
|
|
|
System pressure
|
16MPa
|
|
|
Hydraulic oil tank volume
|
60L
|
|
|
Oil temperature
|
60 ˚C
|
|
|
Electronic
|
Type
|
DC12V
|
|
|
voltage
|
12 V
|
|
|
Storage battery
|
12 V
|
|
|
Water sprinkling system
|
Water sprinkling system
|
Electronic diaphragm pump, water filter, nozzles,
|
|
|
Sweeping disks device
|
Type
|
4 sets of sweeping disks middle-installed driving by hydraulic motor;
The right-front one can work separately, with the function of dodge and repeat working
|
|
|
Diameter
|
850mm
|
|
|
Angle
|
ante version:4-6 °; extroversion: 4-7°
|
|
|
Sucking disk
|
Type
|
Single sucking, hydraulic-control, springs
|
|
|
Sucking diameter
|
200 mm
|
|
| |
|
|
|
|
2, spare parts
| Item |
Name |
Nos. |
Remark |
| 1 |
fire fighting hose |
1 |
For adding water |
| 2 |
fire fighting wrench |
1 |
For disassembling fire hydrant |
| 3 |
Manual rocker for hydraulic pump |
1 |
For manual starting the hydraulic pump |
| 4 |
Spare tyre(with the truck) |
1 |
|
3, spare parts
| Item |
Name |
Nos. |
|
| 1 |
Brushing bristle |
80 |
|
| 2 |
weather-strip of fan |
1 |
|
| 3 |
weather-strip of rear door |
1 |
|
4,imported device
| Items |
Name |
Model |
Country |
| 1 |
Hydraulic motor |
BMR125 |
Italy |
| 2 |
Hydraulic valve |
SWH-G02-C4-D2H |
Taiwan |

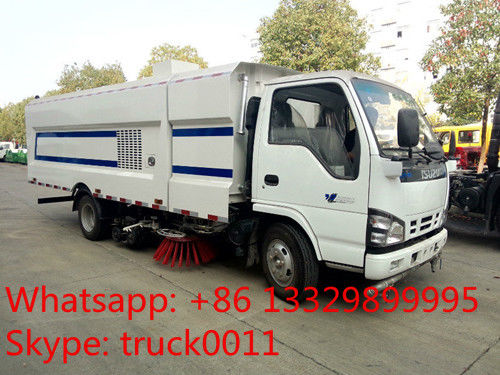

More pictures of hot sale ISUZU brand road sweeping truck manufactured by CHengli Special Automobile Co,, Ltd. as below.
Isuzu road sweeper truck for sale
best price ISUZU brand street sweeper truck for sale
More information, please feel free to contact with Ms. Anita.
