HOT SALE! dongfeng Tianjin 4*2 190hp diesel 10cbm 8T Standard type asphalt spreading tanker truck for sale, new good price bitumen tanker truck supplier for sale
Dongfeng brand 4*2 10cbm asphalt spreading tanker truck, adopts dongfeng Tianjin 4*2 LHD one row and a haf driver cab, B190 33 190hp diesel engine, 8 speed gearbox, 5tons front axle/10tons rear axle, 4500mm wheelbase, 5t front axle/10tons rear axle, power steering and air cut braking, 10.00R20 rail tires*6+1, etc.
The devices of dongfeng tianjin 10cbm standard type asphalt tanker truck manufactured by Chengli Special Automobile Co., Ltd. is as below.
1, the asphalt pump adopts high quality QGB950 (high viscosity asphalt pump, 950L/min).
2, hydraulic system: manual Proportional valve; radiator adopts Risheng brand; the model of hydraulic motor for asphalt pump: 05-110-BD31; hydraulic pump model: CBQ550-L or Power take off after engine GPC4-50R.
3, control way: controlled the control box at the rear working platform, 36 sets intelligent asphalt spraying nozzles (one controls one).
4, Heating method: Burner (Italy imported Riello brand burner model G20) + Automatic heating of heat transfer oil.
5, asphalt distributing width: 4.5m, 48 sets spraying nozzles for 6m spreading width is selective (10000RMB additional).
6, spreading amount: 0.25-3.5L/㎡;
7, gasoline generator unit: 6KW
8, Distributing medium: emulsified asphalt, hot asphalt, SBS hot asphalt, etc.
The asphalt tank distributing vehicle is a kind intelligent automated high-tech special vehicle for distributing different kinds of asphalts such as emulsified asphalt, diluted asphalt, hot asphalt, High viscosity modified asphalt, etc. It is used for distributing the permeable oil waterproof layer on the bottom of asphalt pavement of high grade highways. The asphalt distributing vehicle is made up of truck chassis, asphalt tank body, asphalt pump delivering and spraying system, thermal oil heating system, hydraulic system, combustion system, control system, Pneumatic system, operation platform, etc.
It is very easy to operate this asphalt distributing vehicle, based on the technology of similar products at home and abroad; at the same time increased quality and technical content to ensure construction, Highlight improvement of construction conditions and humanized Design of Construction Environment. The reasonable and reliable design ensures Evenness of asphalt sprinkling, Computer controlling is stable and reliable and Vehicle technical performance has reached the world advanced level, etc. With all the improvements we've made, our CLW brand asphalt distributing vehicle can work in worse conditions.
The bitumen distribution truck for sale are consisted with truck chassis, insulated asphalt tank, heater, hydraulic system, conducting oil pipeline, asphalt pump, spray nozzle, etc. The tank volume is from 3m3 to 18m3. The spray nozzle quantity is from 30 to 48 nos.
The liquid bitumen sprayer truck is mainly used to transport asphalt and distribut it for sealing the road.
If you're interested in our asphalt tanker truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com

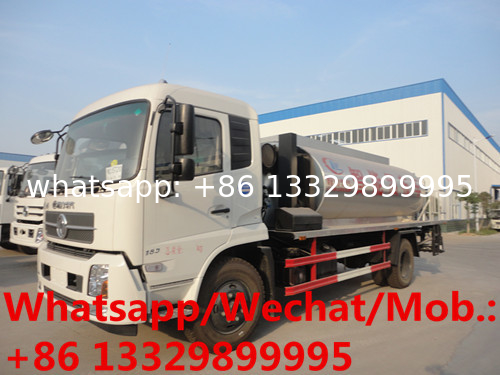

More pictures of dongfeng tianjin standard type 10cbm 8tons asphalt taneker truck manufactured by Chengli Special Automobile CO., Ltd. as below.
main technical parameters of asphalt tanker truck manufactured by Chengli Special Automobile Co., Ltd. as below.
| Main technical parameters |
| Product name |
CLW5160GLQD4 asphalt spreading tanker truck |
| Total mass(Kg) |
16000 |
Tanker volume(m3) |
10cbm |
| Rated mass(Kg) |
6405 |
Overall dimension(L*W*H)(mm) |
8590×2480×2840 |
| Curb mass(Kg) |
9400 |
Driver cab seated person |
3 |
| Approach/departure angle(°) |
20/10 |
Front/rear suspesnion(mm) |
1430/2660 |
| Axle no. |
2 |
wheelbase(mm) |
4500 |
| Axle load(Kg) |
6000/10000 |
Max speed(Km/h) |
90 |
| Chassis main parameters |
| Truck chassis model |
DFL1160 |
Manufacturer |
Dongfeng company |
| Approach/departure angle(°) |
20/13 |
Tire specification |
10.00R20 |
| Steel spring |
7/9+6 |
Front tread(mm) |
1880 |
| Fuel type |
Diesel |
Rear tread(mm) |
1860,1800 |
| Emission standard |
Euro 3 |
| Engine model |
Manufacturer |
Displacement (ml) |
power |
| B190 33 |
Cummins |
5900 |
140 |
